A/C Pressure Transducer Removal and Installation: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
- Install the new O-ring seal on the transducer.

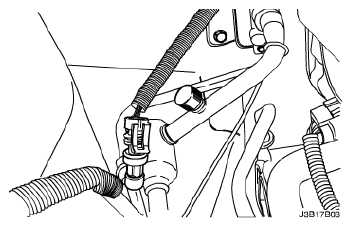

- Install the pressure transducer.
Tighten:
Tighten the pressure transducer to 7 N.m (62 lb-in).
- Connect the wire connector.
- Connect the negative battery cable.
- Recover the refrigerant. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .
