A/C High-Pressure Pipe Line Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

Position the liquid pipe into the vehicle.
Install the liquid pipe support clamp bolts.
Tighten:

Tighten the liquid pipe support clamp bolts to 4 N.m (35 lb-in).

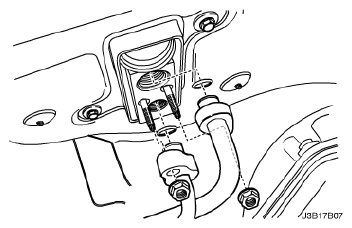

Fig 1: Identifying Liquid Pipe Support Clamp Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install a new O-ring on the pipe at the receiver dryer.
Install the liquid pipe block-to-receiver-dryer retaining nut.
Tighten:

Tighten the liquid pipe block-to-receiver-dryer retaining nut to 14 N.m (10 lb-ft).
Install the headlamp housing at the right-hand side. Refer to HEADLAMP ASSEMBLY REMOVAL AND INSTALLATION (FOR NOTCHBACK AND STATION WAGON MODEL) and HEADLAMP ASSEMBLY REMOVAL AND INSTALLATION (FOR HATCHBACK MODEL) .

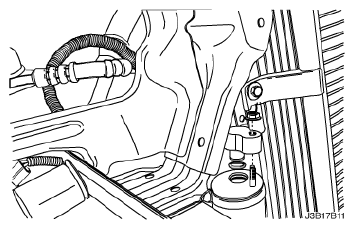

Fig 2: Identifying Liquid Pipe Block-To-Receiver Dryer Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install the liquid evaporator pipe block retaining nut to the fire wall.
Tighten:

Tighten the liquid pipe block-to-expansion valve retaining nut to 14 N.m (10 lb-ft).
Connect the electrical connector at the pressure transducer.
Install the air cleaner housing bolts and the air filter housing assembly.

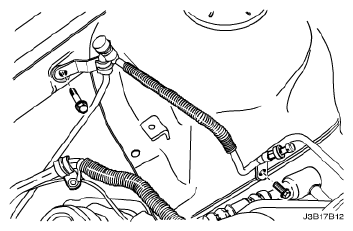

Fig 3: Identifying Liquid Pipe Block-To-Expansion Valve Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.
Position the refrigerant discharge hose into the vehicle.
Install the nut at the condenser connecting block.
Tighten:

Tighten the refrigerant discharge hose block-to-condenser retaining nut to 16 N.m (12 lb-ft).
Install the headlamp housing at the left-hand side. Refer to HEADLAMP ASSEMBLY REMOVAL AND INSTALLATION (FOR NOTCHBACK AND STATION WAGON MODEL) and HEADLAMP ASSEMBLY REMOVAL AND INSTALLATION (FOR HATCHBACK MODEL) .

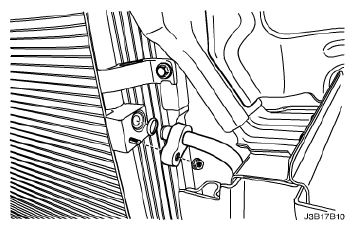

Fig 4: Identifying Refrigerant Discharge Hose Block-To-Condenser Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install the nut at the discharge hose block connected to compressor.
Tighten:

Tighten the refrigerant discharge hose block-to-compressor retaining nut to 33 N.m (24 lb-ft).
Connect the negative battery cable.
Evacuate and recharge the A/C system. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .

Fig 5: Identifying Refrigerant Discharge Hose Block-To-Compressor Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.
