Control Assembly Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the center molding. Refer to CENTER MOLDING REMOVAL AND INSTALLATION .
Disconnect the mode control cable from the mode door.
Disconnect the electrical connectors.

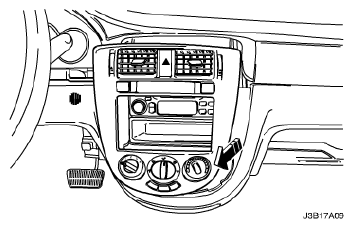

Fig 1: Locating Mode Controller
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the temperature control cable by gently prying the cable eyelet from the post on the controller. Unsnap the cable housing from the mechanical slide. Note the location of the cable and the housing for ease of installation.
Pull out the center molding.

Fig 2: Identifying Center Molding
Courtesy of SUZUKI OF AMERICA CORP.
Remove the 4 controller retaining screws.
Remove the control assembly from the center molding.

Fig 3: Locating Control Assembly On Center Molding And Controller Retaining Screws
Courtesy of SUZUKI OF AMERICA CORP.
