DTC P0140 Oxygen Sensor 2 (O2S2) No Activity or Open: Notes

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

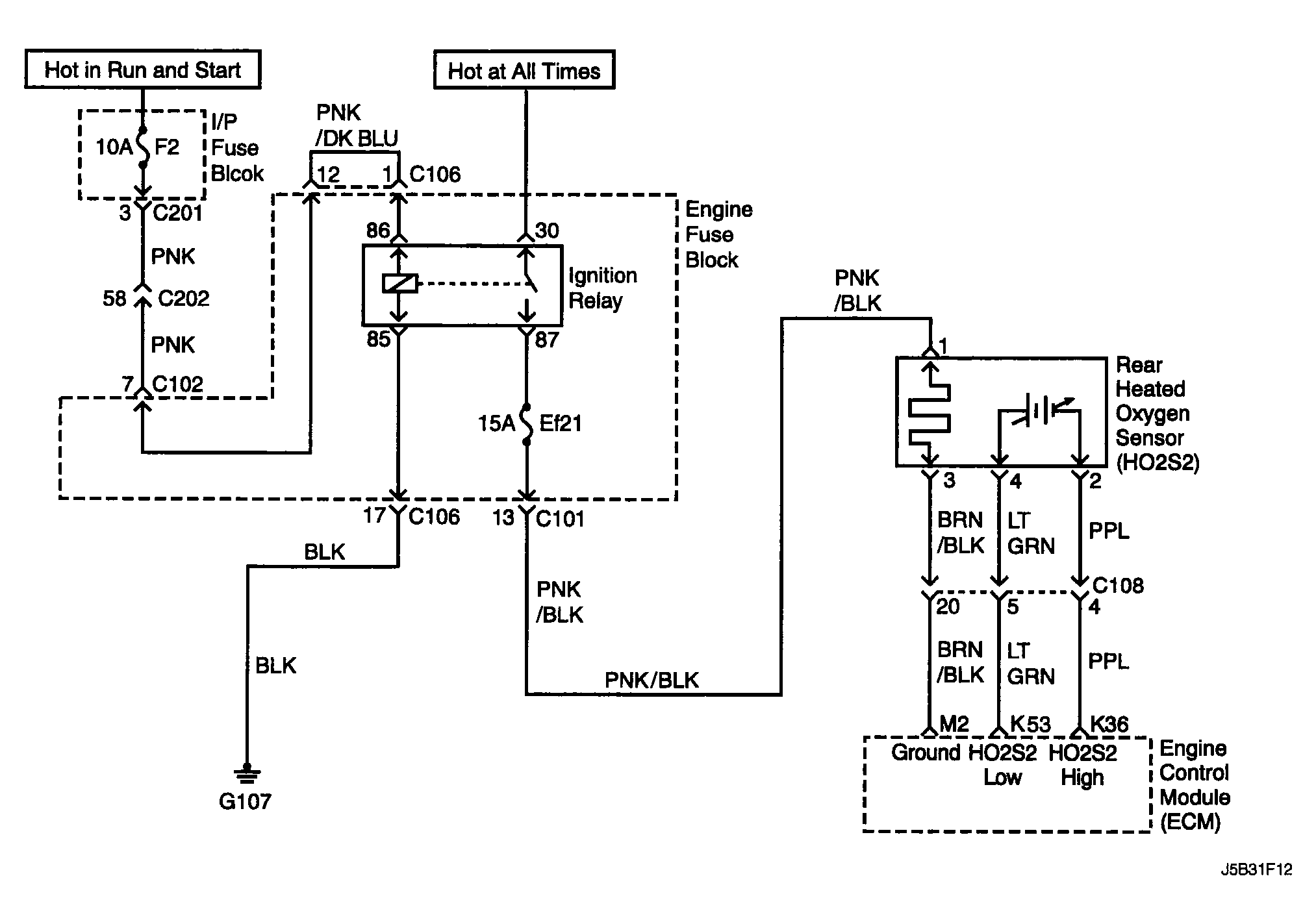

Fig 1: Oxygen Sensor 2 (O2S2) No Activity Or Open - Circuit Diagram
G04102537Courtesy of SUZUKI OF AMERICA CORP.
