On-Vehicle Balancing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
On-vehicle balancing will help correct vibrations due to brake drum, rotor and wheel cover imbalances.
CAUTION:
Do not allow the front suspension to hang free. When the drive axle is run at an extreme angle, extra vibrations can occur, as well as damage to seals and joints.
- During on-vehicle balancing, do not remove the balance weights from the off-vehicle dynamic balance.

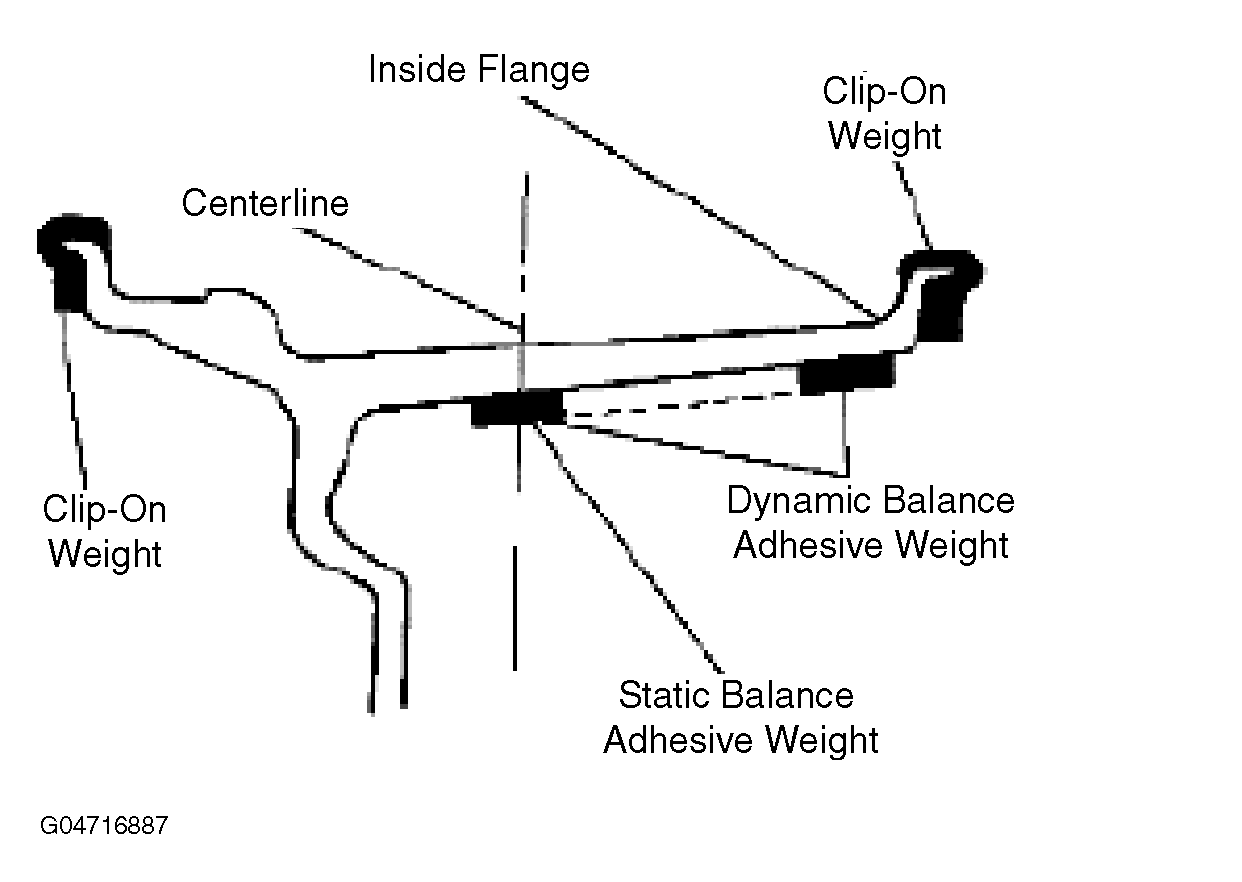

- If more than 1 ounce of additional weight is required, split the weight between the inner and the outer rim flanges.
- Spin the driven tire and wheel assemblies using the engine.
