Housing Case Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Install the speedometer-driven gear bolt and the speedometer-driven gear into the transaxle housing.
Tighten

Tighten the speedometer-driven gear bolt to 5 N.m (44 lb-in)

Fig 1: Installing Speedometer-Driven Gear
Courtesy of SUZUKI OF AMERICA CORP.
Install the clutch-release bearing guide and the clutch-release bearing. Refer to "CONCENTRIC SLAVE CYLINDER REMOVAL AND INSTALLATION :".
Install the backup lamp switch into the transaxle housing.
Tighten

Tighten the backup lamp switch to 20 N.m (15 lb-ft).

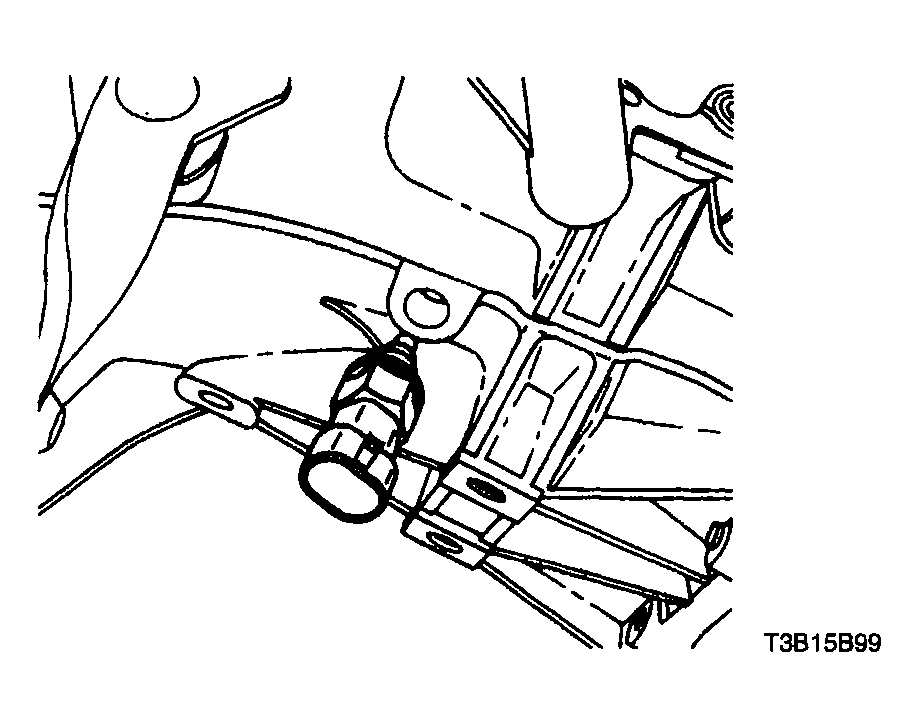

Fig 2: Installing Backup Lamp Switch Into Transaxle Housing
Courtesy of SUZUKI OF AMERICA CORP.
Install the differential into the transaxle housing. Refer to "DIFFERENTIAL DISASSEMBLY AND ASSEMBLY :
Install the bearing plate, with the shafts attached.
Install the bearing plate bolts.
Tighten

Tighten the bearing plate bolts to 22 N.m (16 lb-ft).

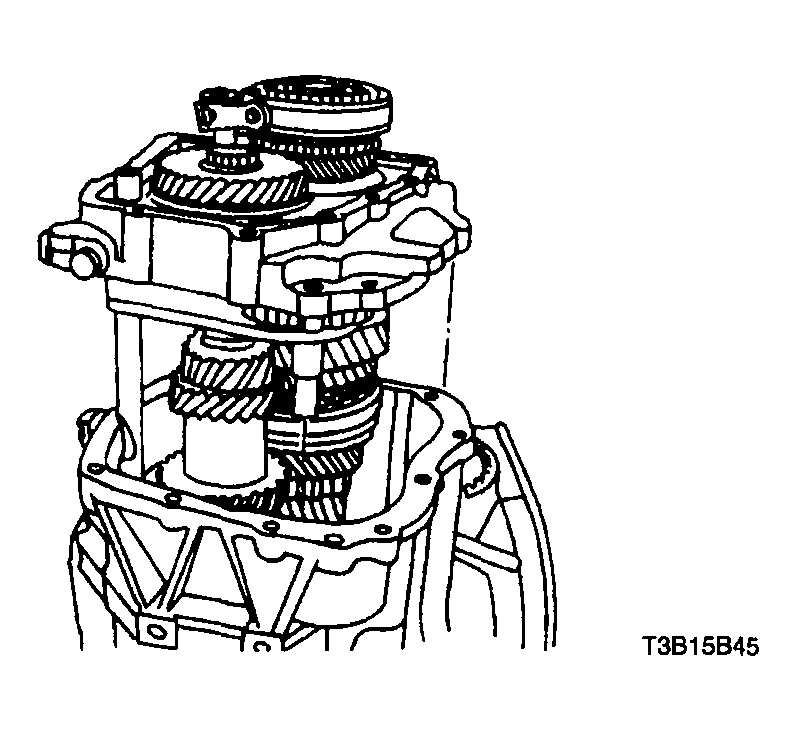

Fig 3: Installing Bearing Plate
Courtesy of SUZUKI OF AMERICA CORP.
Install the transaxle cover and the transaxle cover bolts.
Tighten

Tighten the transaxle cover bolts to 18 N.m (13 lb-ft).

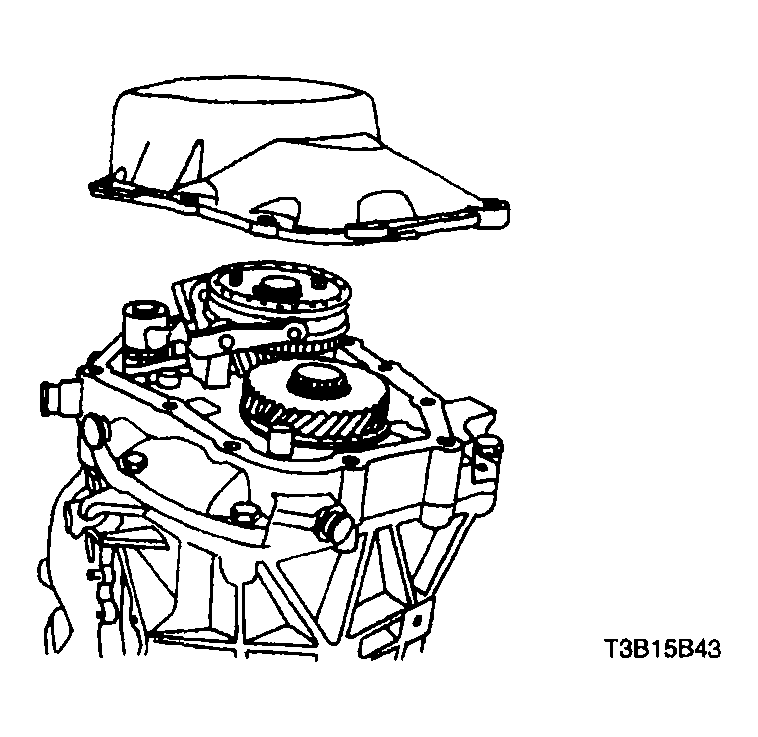

Fig 4: Installing Transaxle Cover
Courtesy of SUZUKI OF AMERICA CORP.
Install the gearshift lever cover and the gearshift lever cover bolts.
Tighten

Tighten the gearshift lever cover bolts to 22 N.m (16 lb-ft).
Install the transaxle into the vehicle. Refer to "TRANSAXLE ASSEMBLY REMOVAL AND INSTALLATION :".

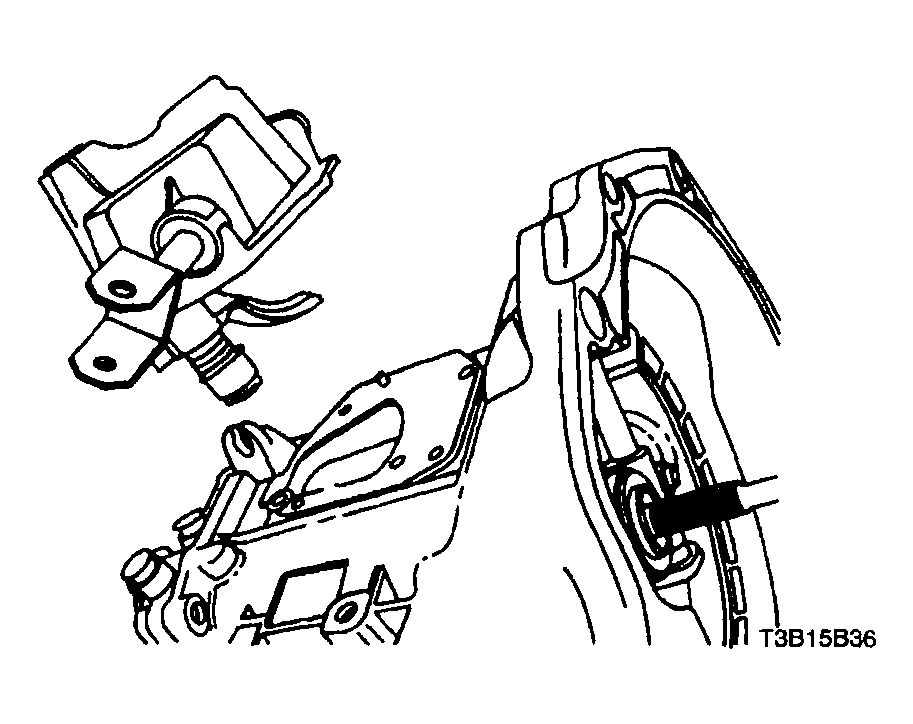

Fig 5: Installing Gearshift Lever Cover
Courtesy of SUZUKI OF AMERICA CORP.
