Headlamp Assembly Removal and Installation (For NOTCHBACK and STATION WAGON Model): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the headlamp mounting bolts.

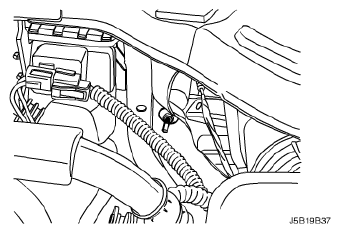

Fig 1: Identifying Headlamp Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the headlamp mounting nut.

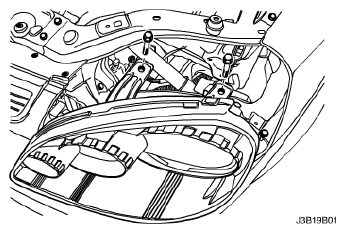

Fig 2: Identifying Headlamp Mounting Nut
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the turn signal lamp electrical connector.

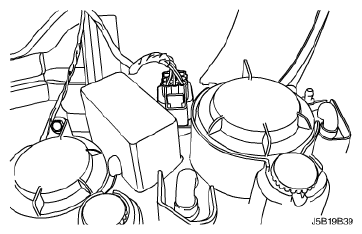

Fig 3: Identifying Turn Signal Lamp Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the headlamp electrical connector.

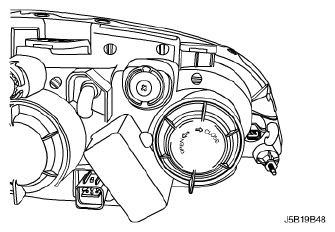

Fig 4: Identifying Headlamp Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Remove the headlamp assembly.
Turn left and remove the headlamp low-beam cap.

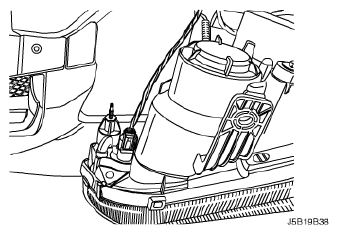

Fig 5: Identifying Headlamp Low-Beam Cap
Courtesy of SUZUKI OF AMERICA CORP.
Dry off the headlamp low-beam bulb clip.
Disconnect the headlamp low-beam bulb connector.

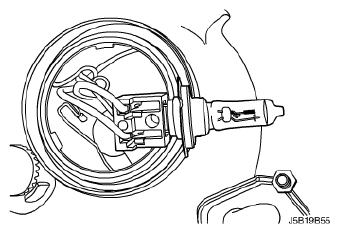

Fig 6: Identifying Headlamp Low-Beam Bulb Connector
Courtesy of SUZUKI OF AMERICA CORP.
Remove the headlamp low-beam bulb.

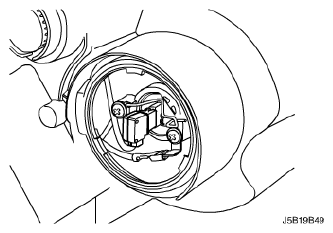

Fig 7: Identifying Headlamp Low-Beam Bulb
Courtesy of SUZUKI OF AMERICA CORP.
Remove the park lamp.

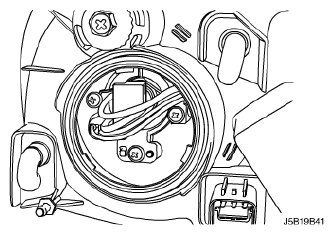

Fig 8: Identifying Park Lamp
Courtesy of SUZUKI OF AMERICA CORP.
Remove the headlamp high-beam cap.

Fig 9: Identifying Headlamp Beam Cap
Courtesy of SUZUKI OF AMERICA CORP.
Pry off the headlamp high-beam bulb clip.
Disconnect the headlamp high-beam bulb connector.
Remove the headlamp high-beam bulb.

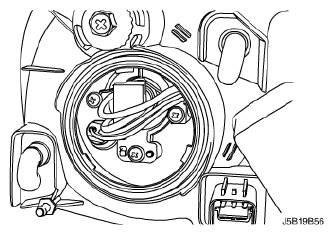

Fig 10: Identifying Headlamp High-Beam Bulb Connector
Courtesy of SUZUKI OF AMERICA CORP.
Remove the turn signal lamp.

Fig 11: Identifying Turn Signal Lamp
Courtesy of SUZUKI OF AMERICA CORP.
