Drive Range - Second Gear
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

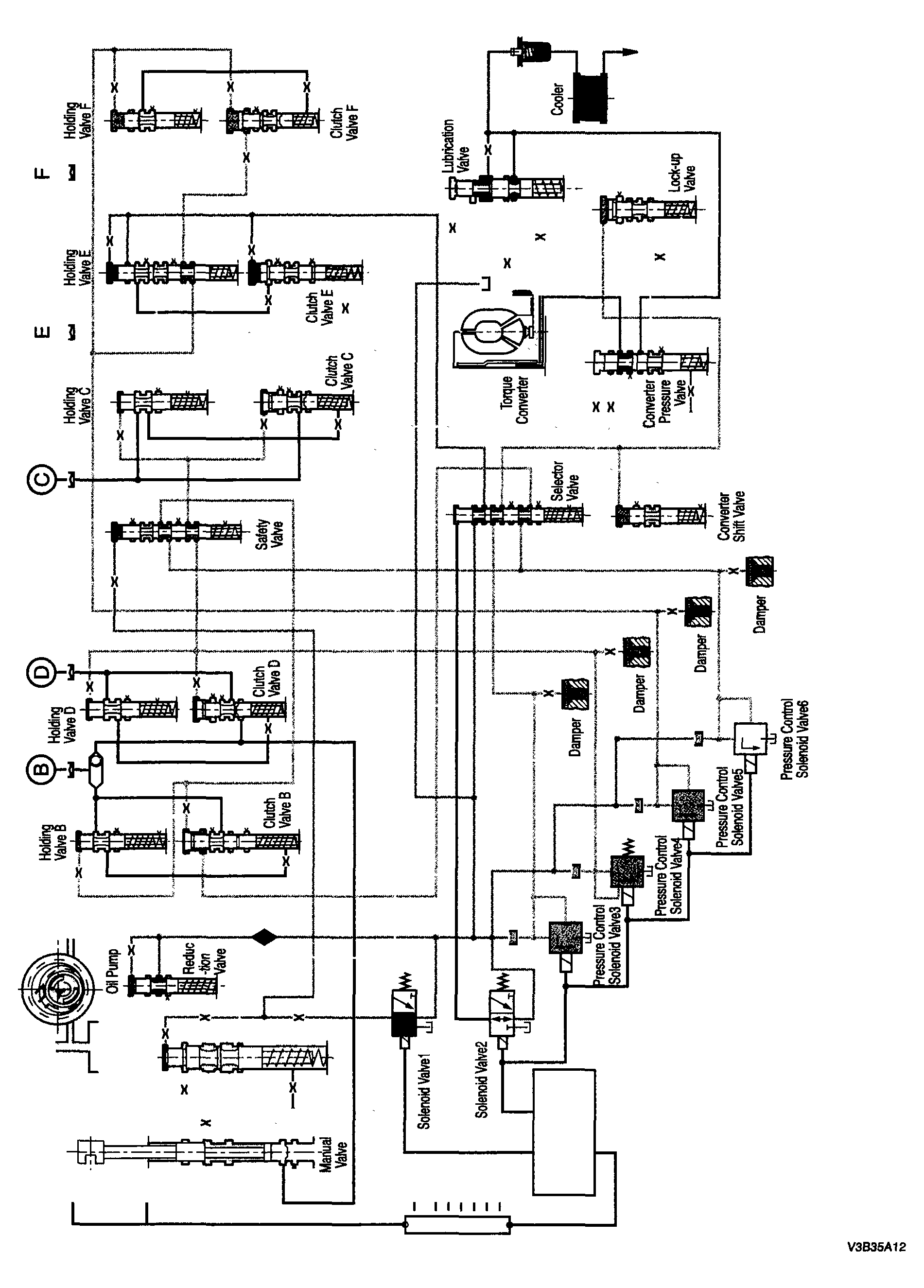

In Drive 2, the transaxle drive is via the input shaft and clutch E. The elements of this transaxle function are as follows:
- Clutch E is applied to drive the front ring gear.
- The front ring gear drives the front planetary gear carrier.
- The front planetary gear carrier drives the differential pinion gear clockwise.
- Brake F is applied holding the front sun gear stationary.
