DTC P0713 Transmission Fluid Temperature Sensor Circuit Shorted to Power and Open: Notes

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

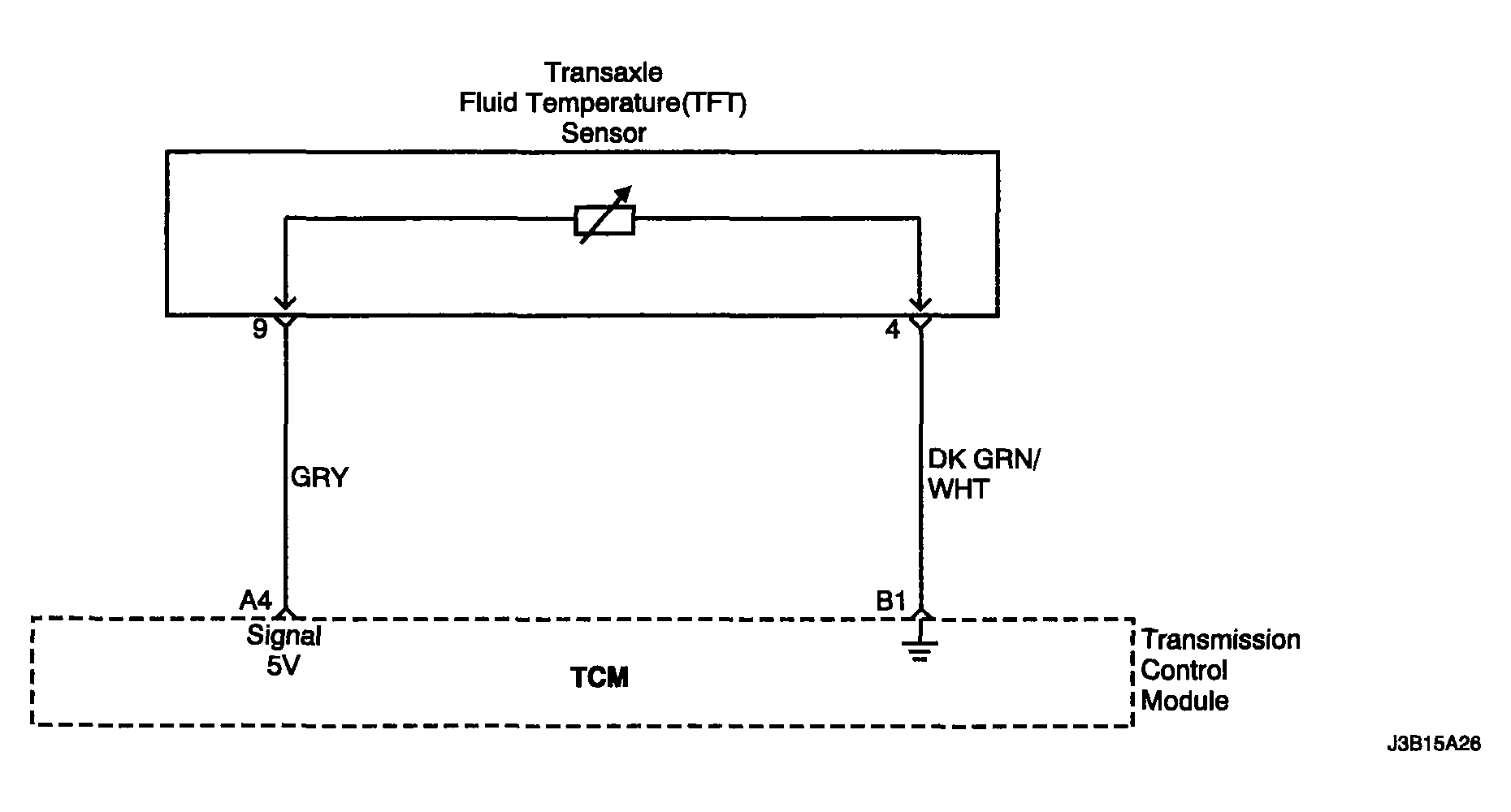

Fig 1: DTC P0713 Transmission Fluid Temperature Sensor Circuit Shorted To Power And Open
G04103466Courtesy of SUZUKI OF AMERICA CORP.
