Windshield Washer Hoses Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the windshield washer hose from the washer nozzles.

Fig 1: Disconnecting Windshield Washer Hose From Washer Nozzles
Courtesy of SUZUKI OF AMERICA CORP.
Remove the front left wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
Remove the bolts, the screws and the front wheel well splash shield.
Disconnect the washer hose from the washer reservoir.
Remove the washer hose.

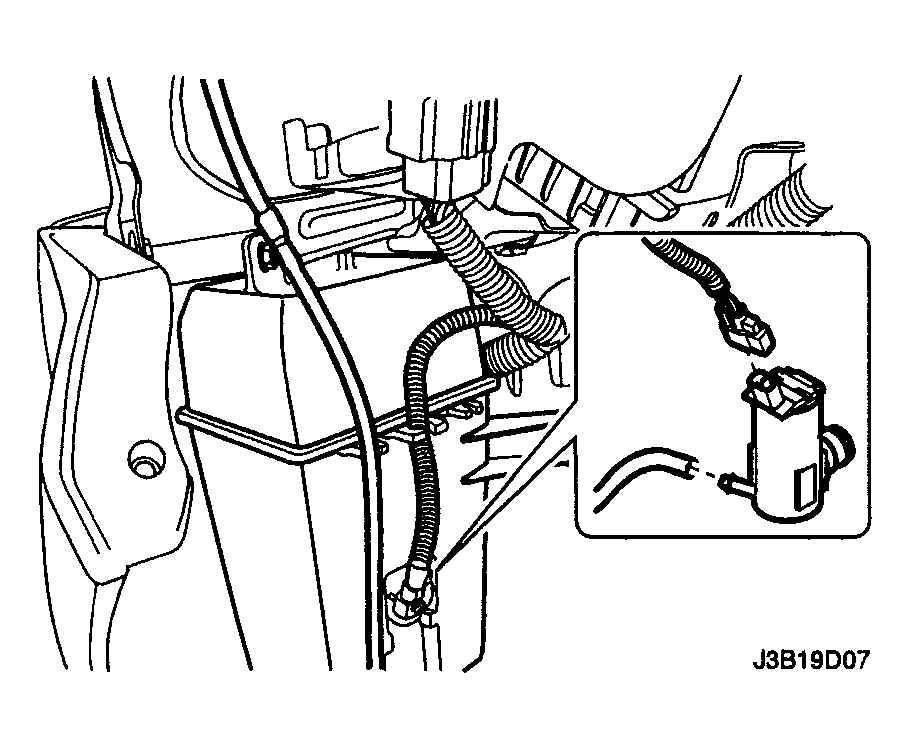

Fig 2: Disconnecting Washer Hose From Washer Reservoir
Courtesy of SUZUKI OF AMERICA CORP.
