Temperature Control Cable Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the temperature control cable eyelet to the post on the temperature door lever.
  2. Install the clip of the temperature cable.

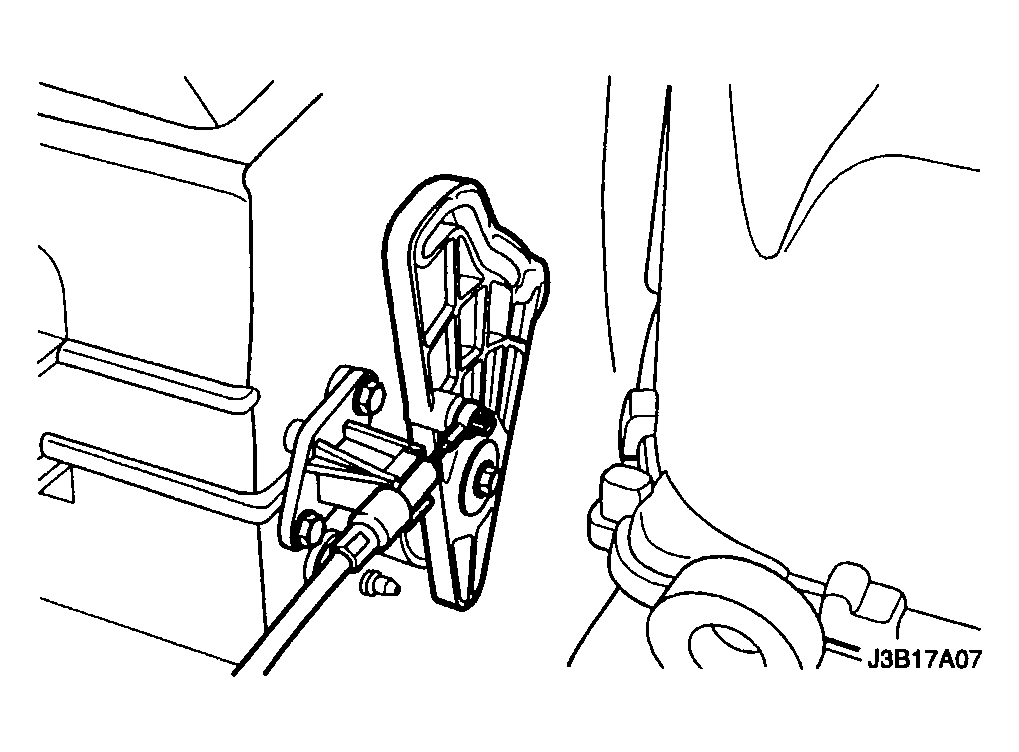

    Fig 1: Installing Clip Of Temperature Cable
    G04104067Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the temperature control cable eyelet to the post on the controller.
  4. Install the clip of the temperature control cable.
  5. Install the mode control cable to the mode door.
  6. Insert the center molding into position on the instrument panel.
  7. Move the temperature control to verify the smooth operation and function of the door and the cable.
  8. Connect the negative battery cable.
  9. Operate the heating and cooling systems to verify proper function.

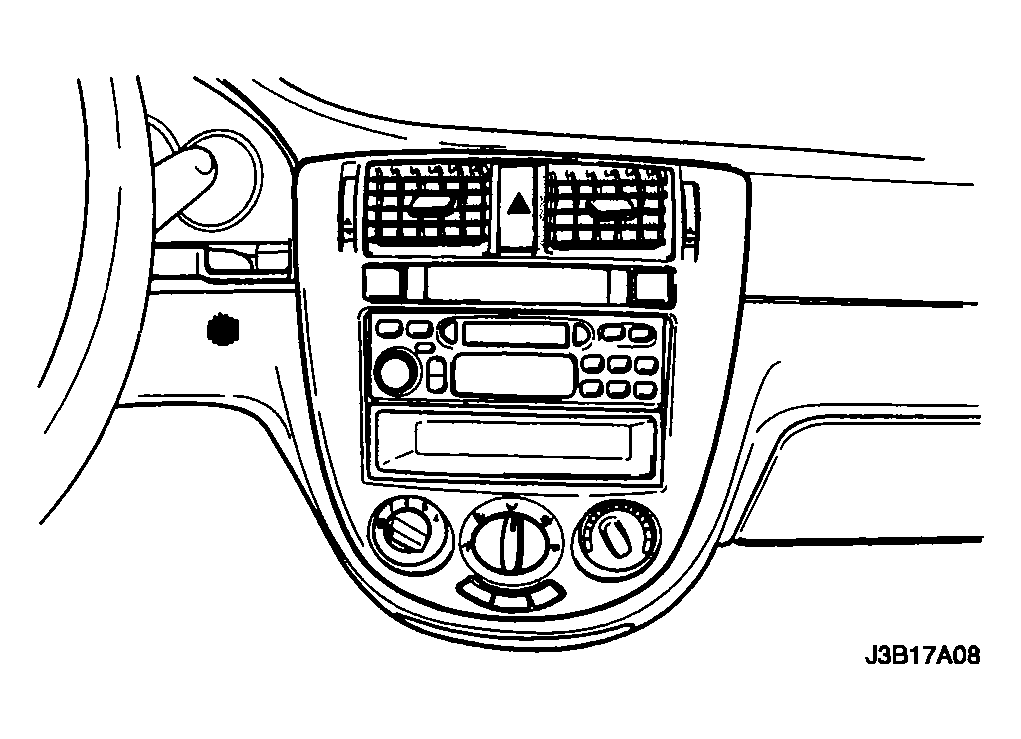

    Fig 2: Operating Heating And Cooling Systems
    G04104069Courtesy of SUZUKI OF AMERICA CORP.
