Control Assembly Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the control assembly with the retaining screws to the center molding.

    Tighten

    Tighten the controller retaining screws to 2 N.m (18 lb-in).

  2. Press the cable end eyelet onto the post on the controller.
  3. Attach the mechanical cable housing to its original control position.
  4. Connect the electrical connectors to the sockets on the back of the controller.

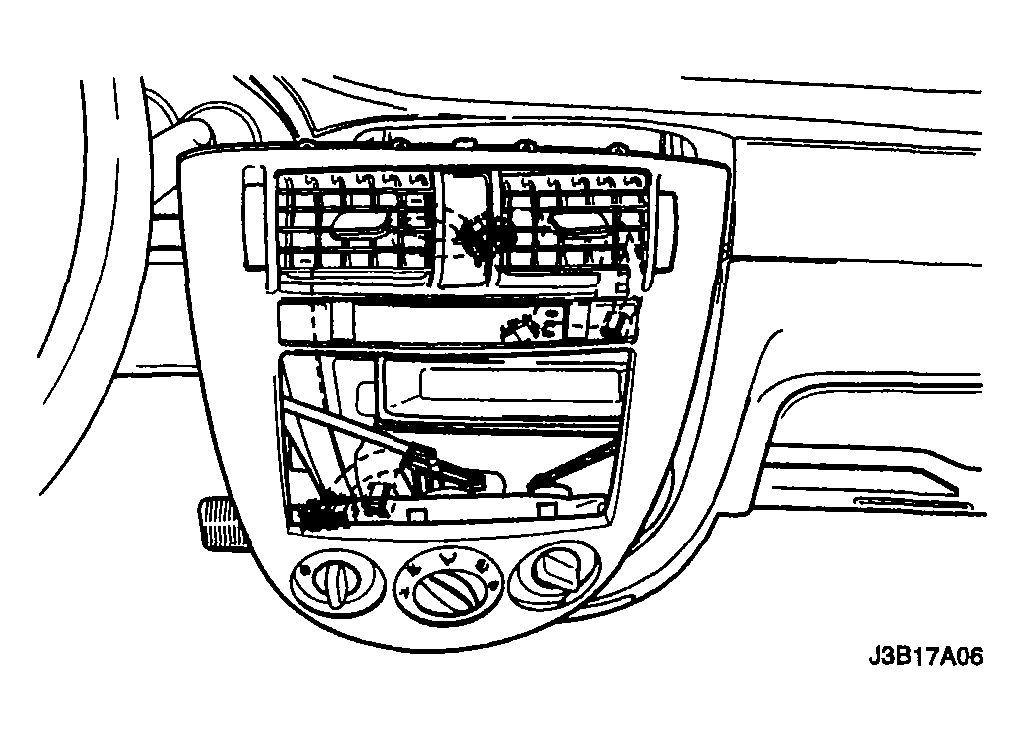

    Fig 1: Installing Control Assembly
    G04104073Courtesy of SUZUKI OF AMERICA CORP.
  5. Gently insert the center molding into position on the instrument panel.
  6. Connect the negative battery cable.
  7. Confirm the proper operation of the controller by moving it through all of the controller's possible functioning positions.

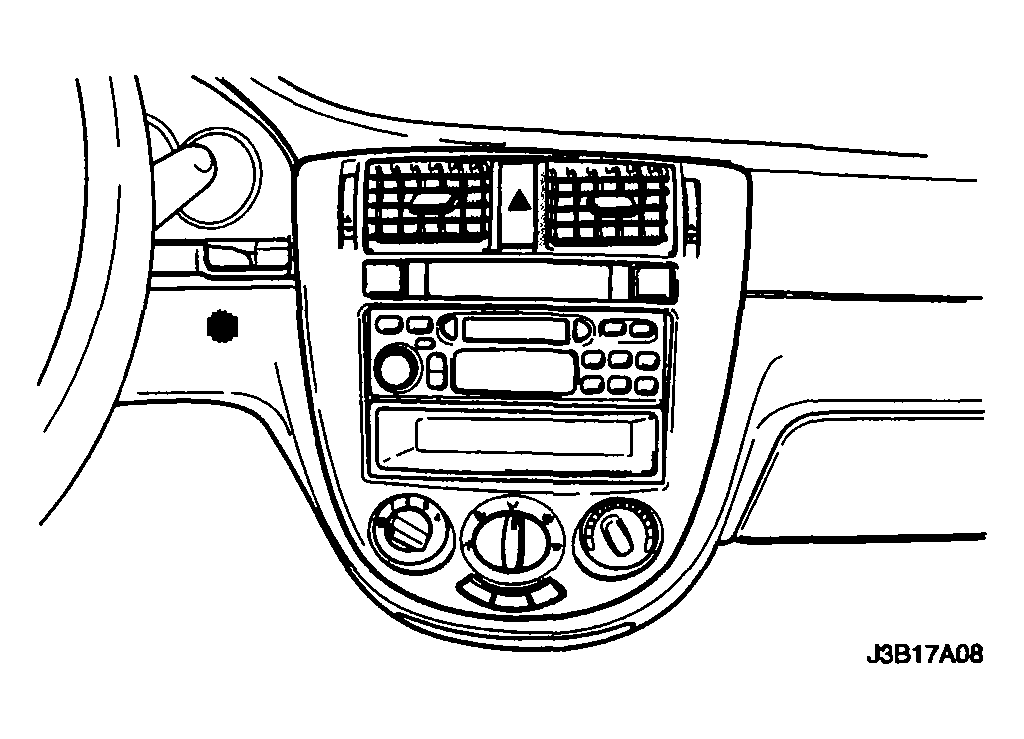

    Fig 2: Identifying Center Molding Into Position On Instrument Panel
