Underbody Dimensions

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

For notchback and wagon model

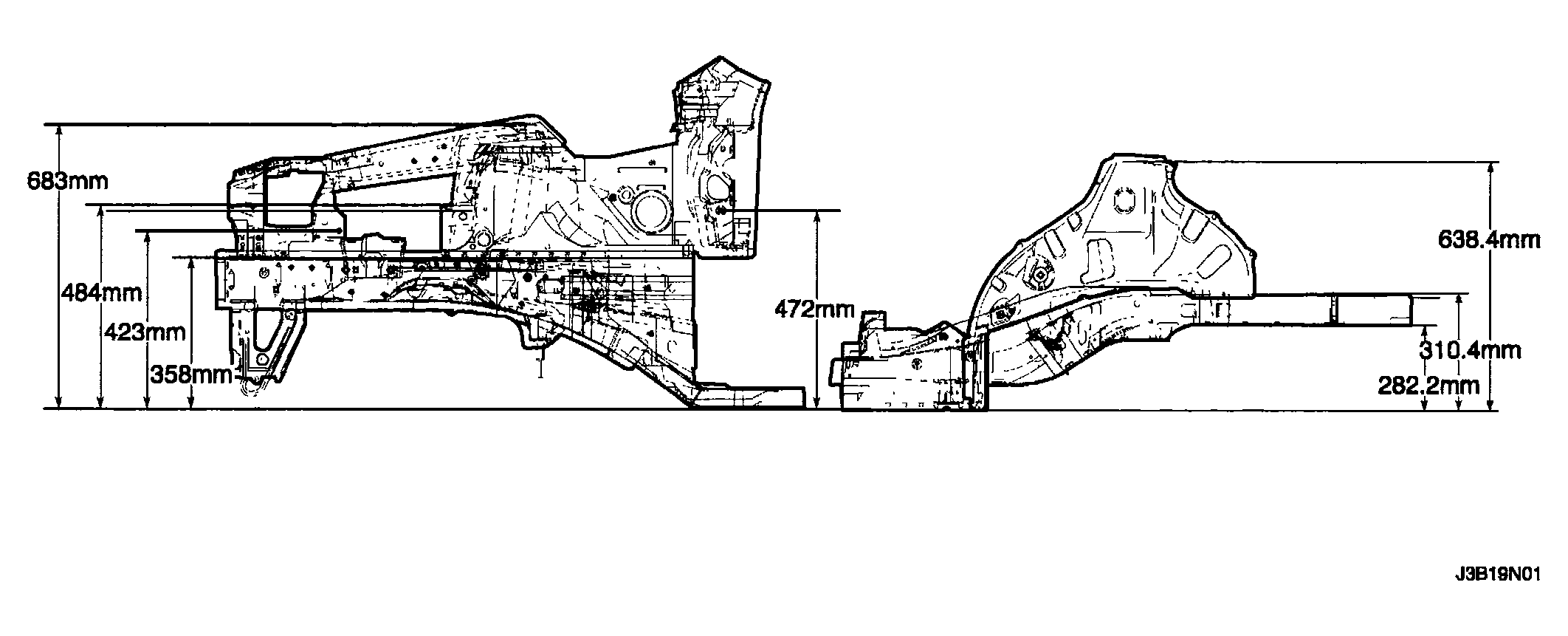

Fig 1: Identifying Underbody Frame Dimensions - Notchback And Wagon Model (1 Of 4)

G04104864

Courtesy of SUZUKI OF AMERICA CORP.

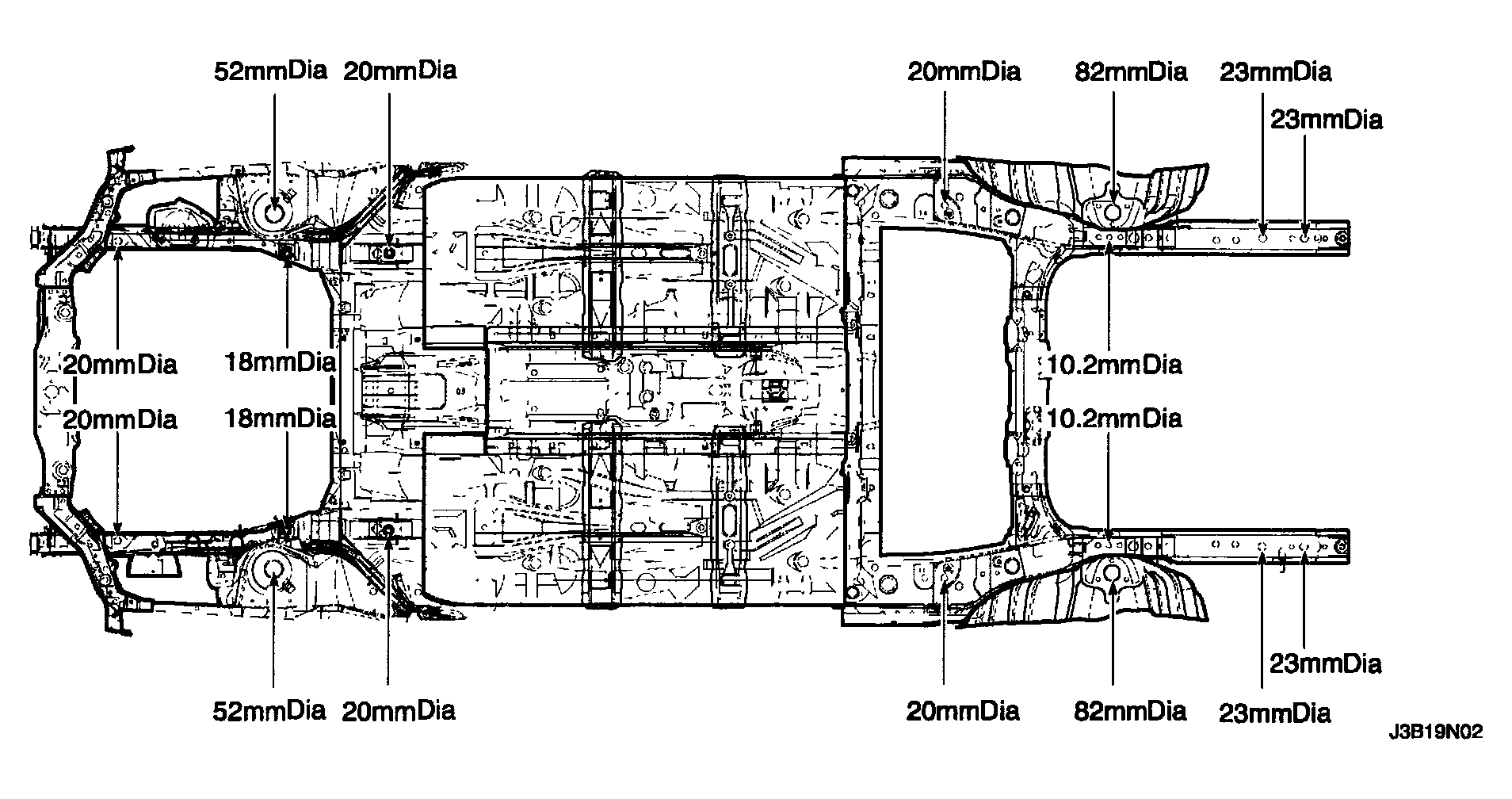

Fig 2: Identifying Underbody Frame Dimensions - Notchback And Wagon Model (2 Of 4)

G04104865

Courtesy of SUZUKI OF AMERICA CORP.

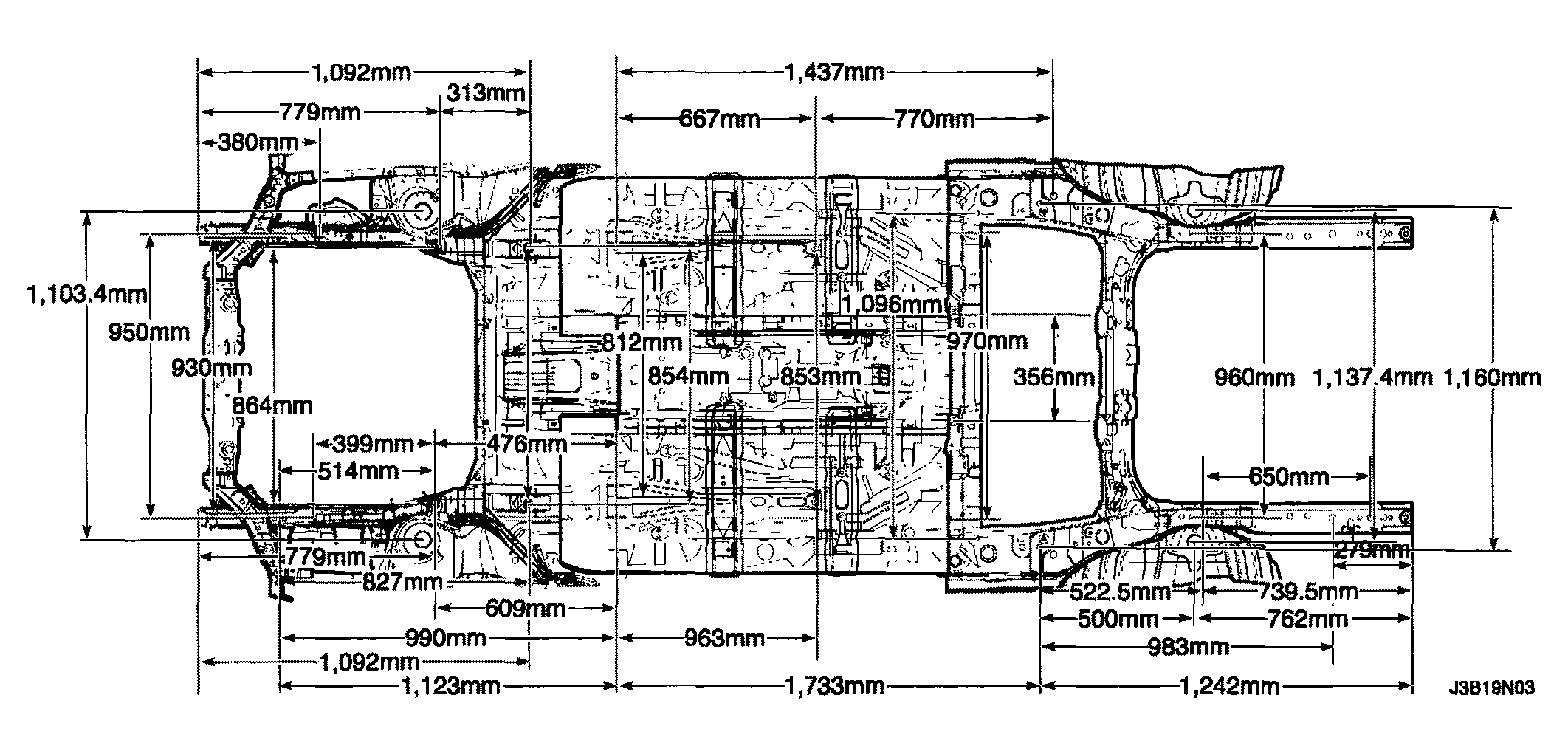

Fig 3: Identifying Underbody Frame Dimensions - Notchback And Wagon Model (3 Of 4)

G04104866

Courtesy of SUZUKI OF AMERICA CORP.

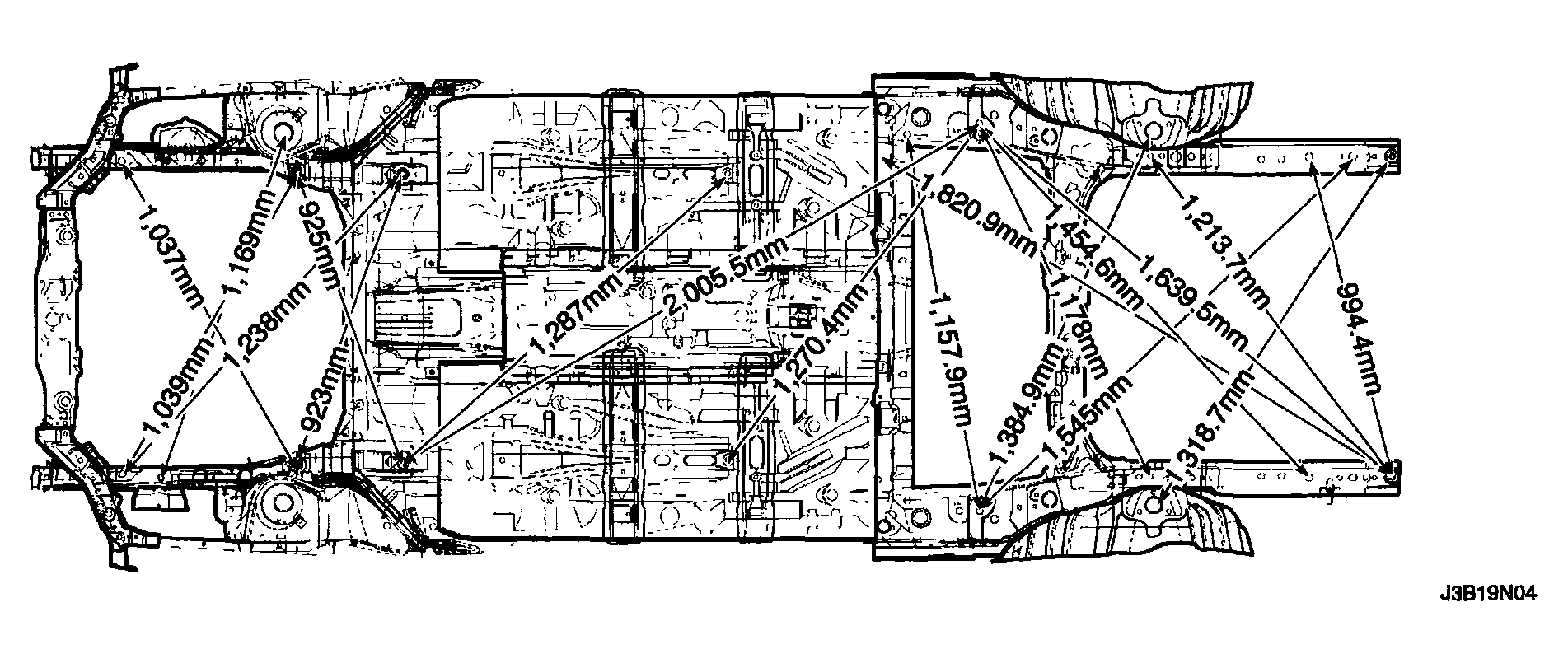

Fig 4: Identifying Underbody Frame Dimensions - Notchback And Wagon Model (4 Of 4)

G04104867

Courtesy of SUZUKI OF AMERICA CORP.

For hatchback model

Fig 5: Identifying Underbody Frame Dimensions - Hatchback Model (1 Of 4)

G04104868

Courtesy of SUZUKI OF AMERICA CORP.

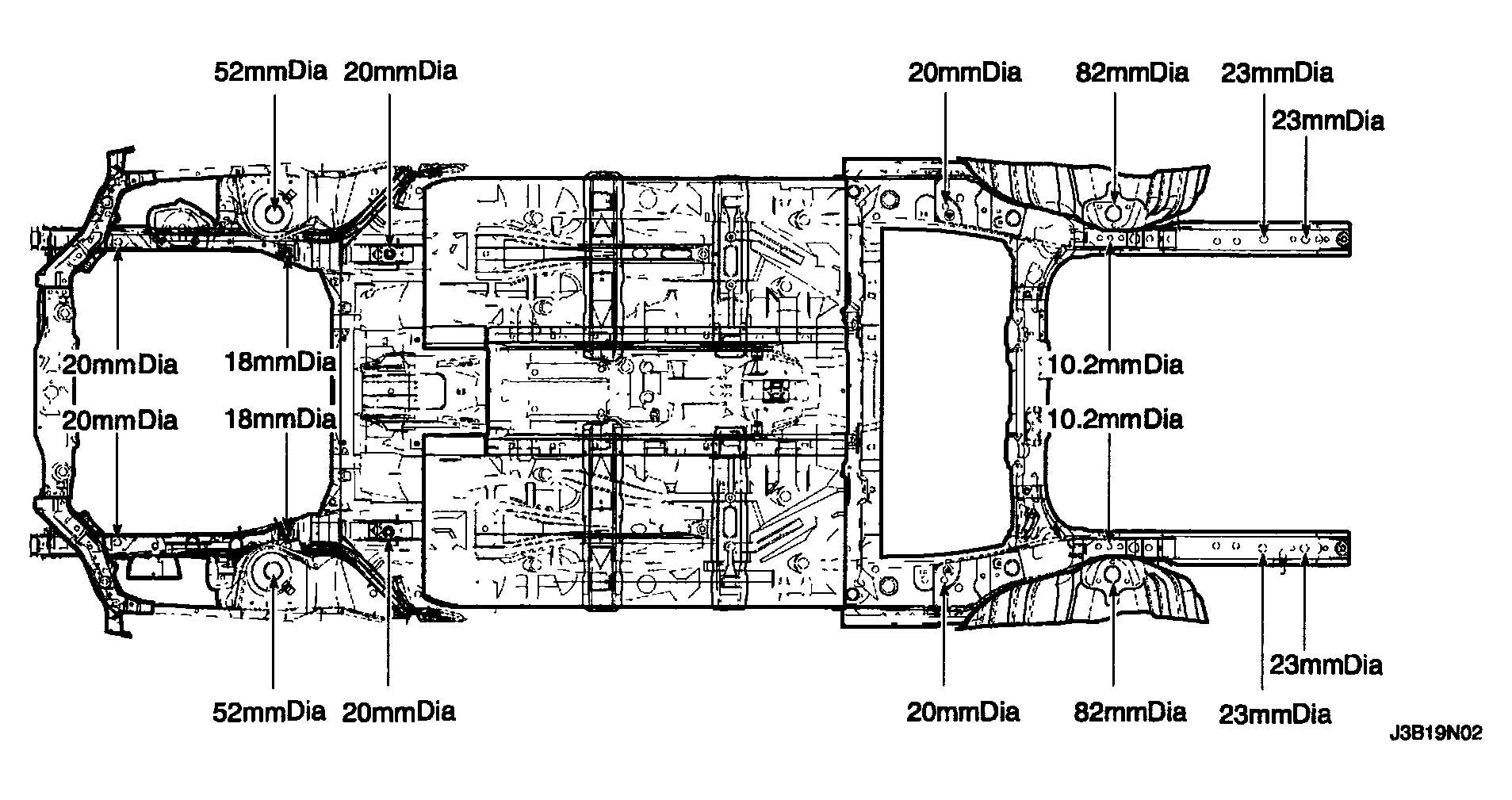

Fig 6: Identifying Underbody Frame Dimensions - Hatchback Model (2 Of 4)

G04104869

Courtesy of SUZUKI OF AMERICA CORP.

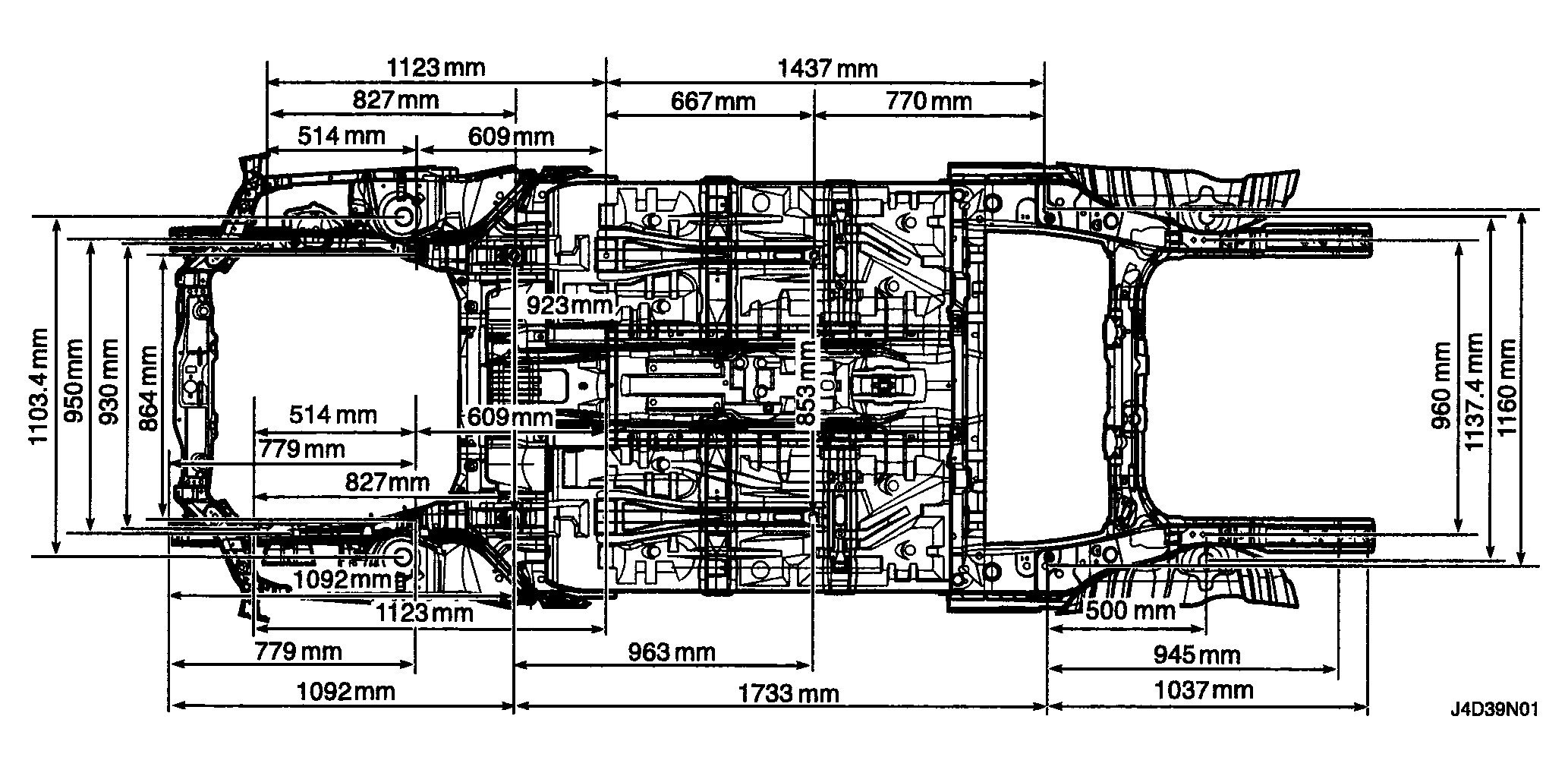

Fig 7: Identifying Underbody Frame Dimensions - Hatchback Model (3 Of 4)

G04104870

Courtesy of SUZUKI OF AMERICA CORP.

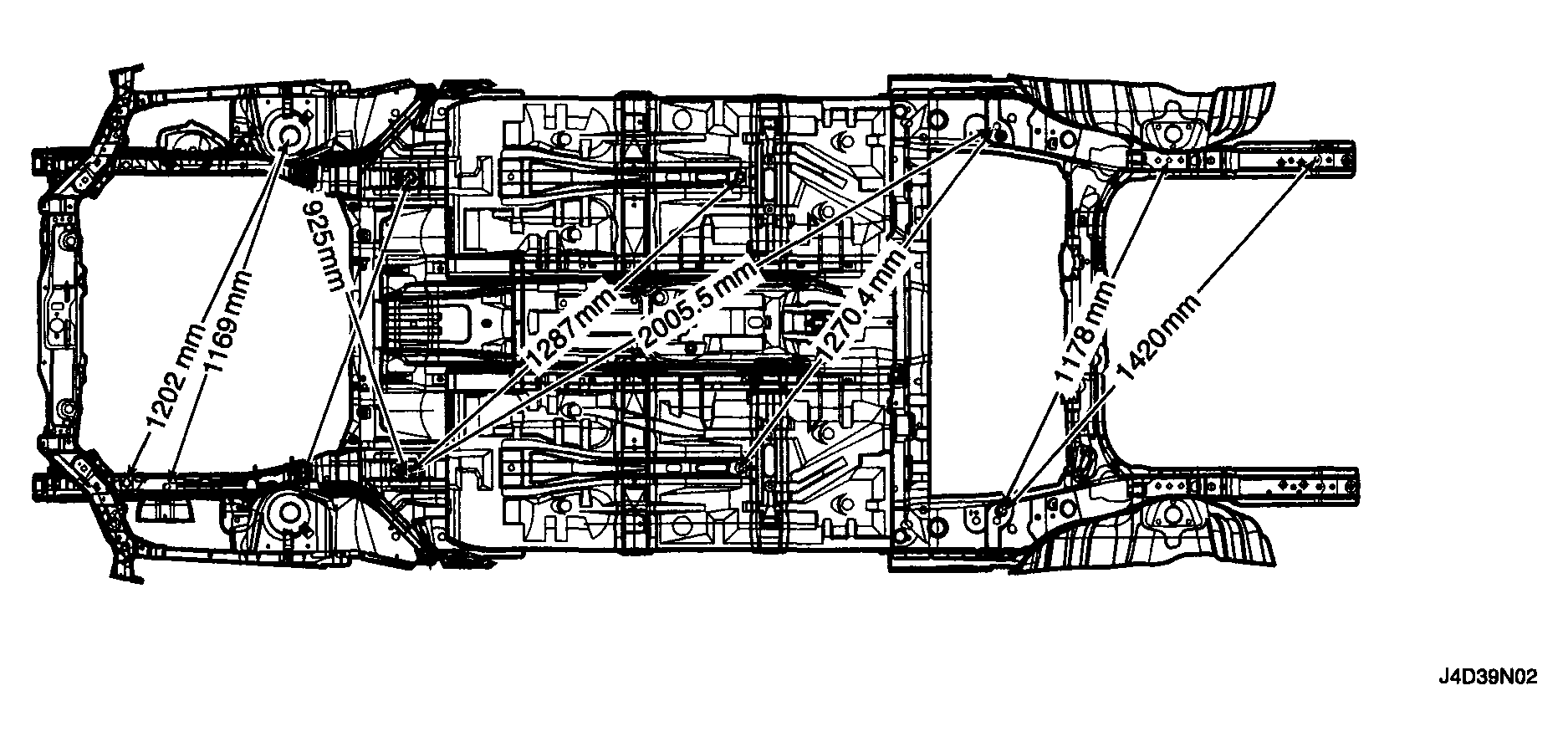

Fig 8: Identifying Underbody Frame Dimensions - Hatchback Model (4 Of 4)

G04104871

Courtesy of SUZUKI OF AMERICA CORP.
