For station wagon model: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the C-pillar trim. Refer to "C-PILLAR TRIM PANEL REMOVAL AND INSTALLATION (FOR STATION WAGON MODEL) :".
Remove the rear wheel house trim panel. Refer to "REAR WHEELHOUSE TRIM REMOVAL AND INSTALLATION :".
Remove the D-pillar trim. Refer to "D-PILLAR TRIM PANEL REMOVAL AND INSTALLATION (FOR STATION WAGON MODEL) :".

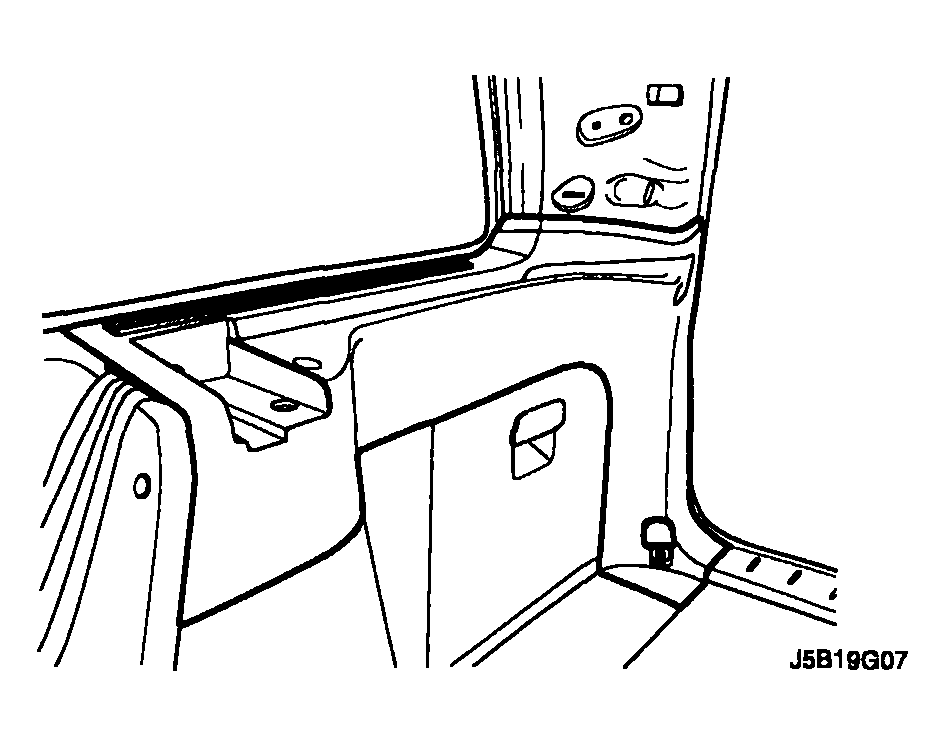

Remove the screws, the clips, and the luggage compartment wheelhouse trim panel.

Fig 1: Removing Screws, Clips, And Luggage Compartment Wheelhouse Trim Panel
Courtesy of SUZUKI OF AMERICA CORP.

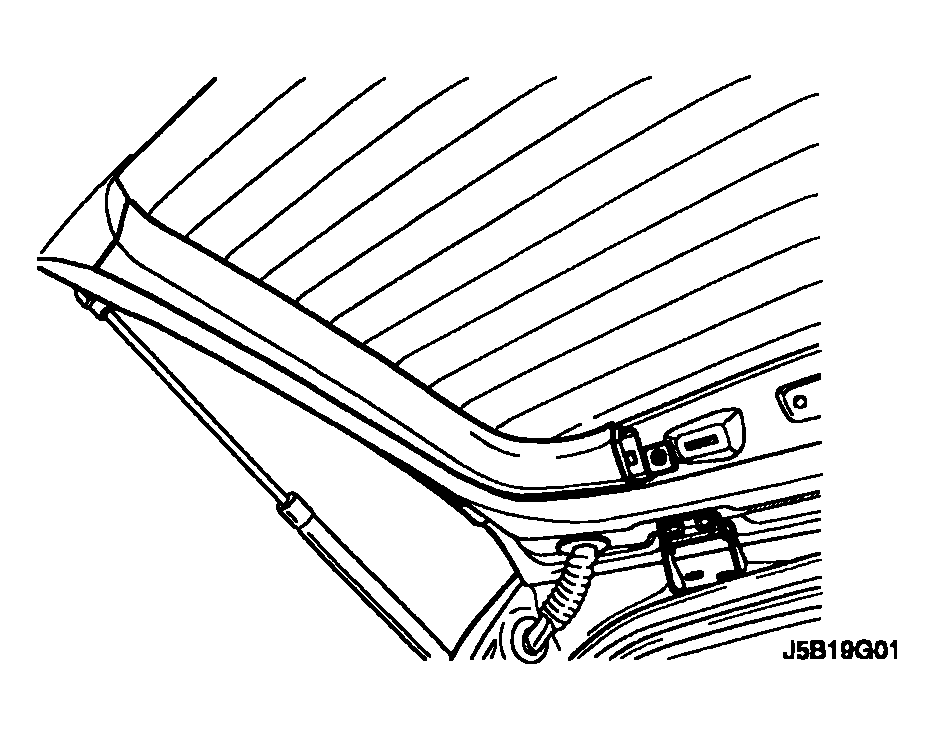

Remove the tailgate upper garnish molding. Refer to "TAILGATE UPPER GARNISH MOLDING REMOVAL AND INSTALLATION :".

Fig 1: Removing Tailgate Upper Garnish Molding
Courtesy of SUZUKI OF AMERICA CORP.
Remove the screws and tailgate upper garnish molding cover.
Remove the screws with the side molding.

Fig 2: Removing Screws And Tailgate Upper Garnish Molding Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove the tailgate lower garnish molding upper screws.

Fig 3: Removing Tailgate Lower Garnish Molding Upper Screws
Courtesy of SUZUKI OF AMERICA CORP.

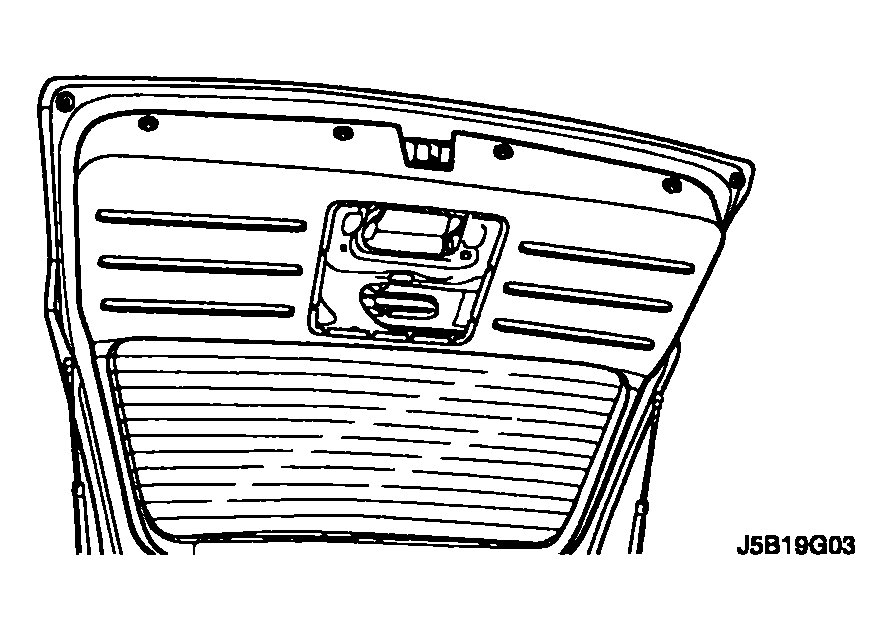

Remove the screws and the tailgate lower garnish molding.

Fig 4: Removing Screws And Tailgate Lower Garnish Molding
Courtesy of SUZUKI OF AMERICA CORP.

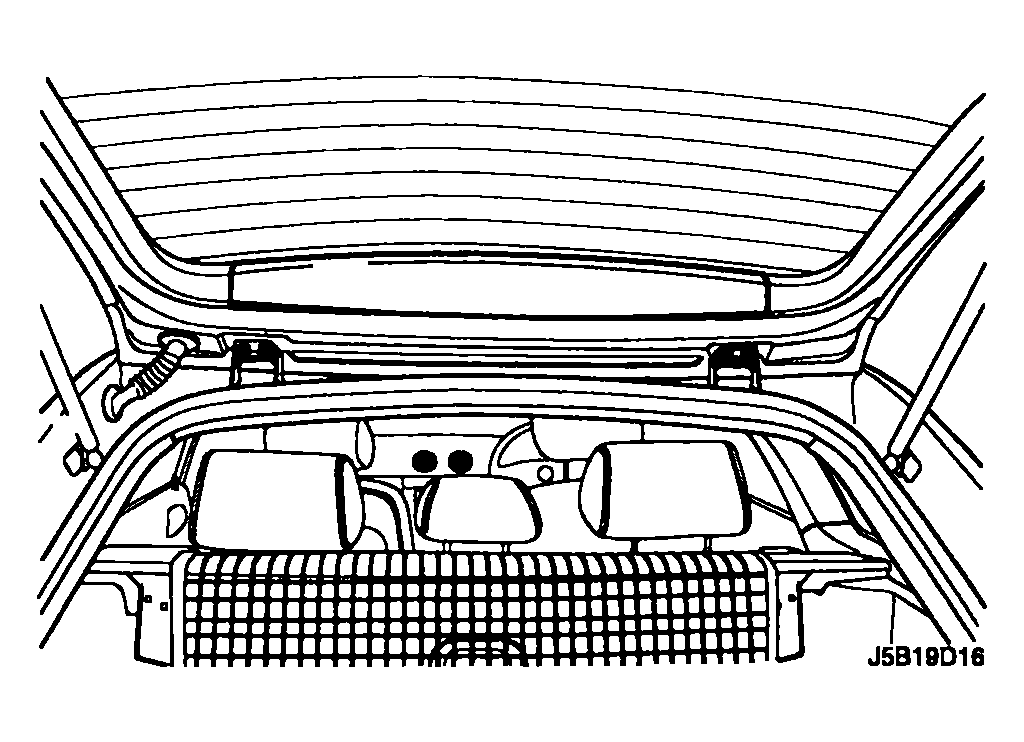

Open the tailgate.
Remove the tailgate upper garnish molding.

Fig 1: Removing Tailgate Upper Garnish Molding
Courtesy of SUZUKI OF AMERICA CORP.
