For hatchback model: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the luggage compartment rear trim panel. Refer to "LUGGAGE COMPARTMENT REAR TRIM PANEL REMOVAL AND INSTALLATION (FOR HATCHBACK MODEL) :"
  2. Remove the clips and the screw.
  3. Remove the wheelhouse trim panel.

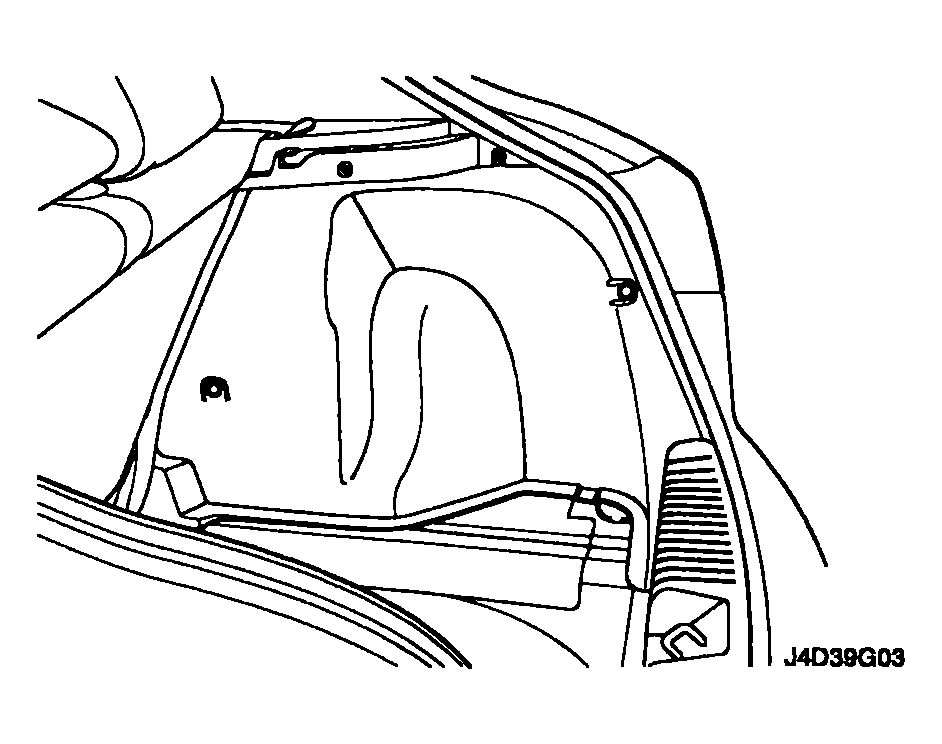

    Fig 1: Removing Wheelhouse Trim Panel
    G04104631Courtesy of SUZUKI OF AMERICA CORP.
