Floor Console Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.
  2. Install the floor console.
  3. Install the front portion of the floor console with the screws.
  4. Install the screws to the rear portion of the floor console.
  5. Connect the negative battery cable.

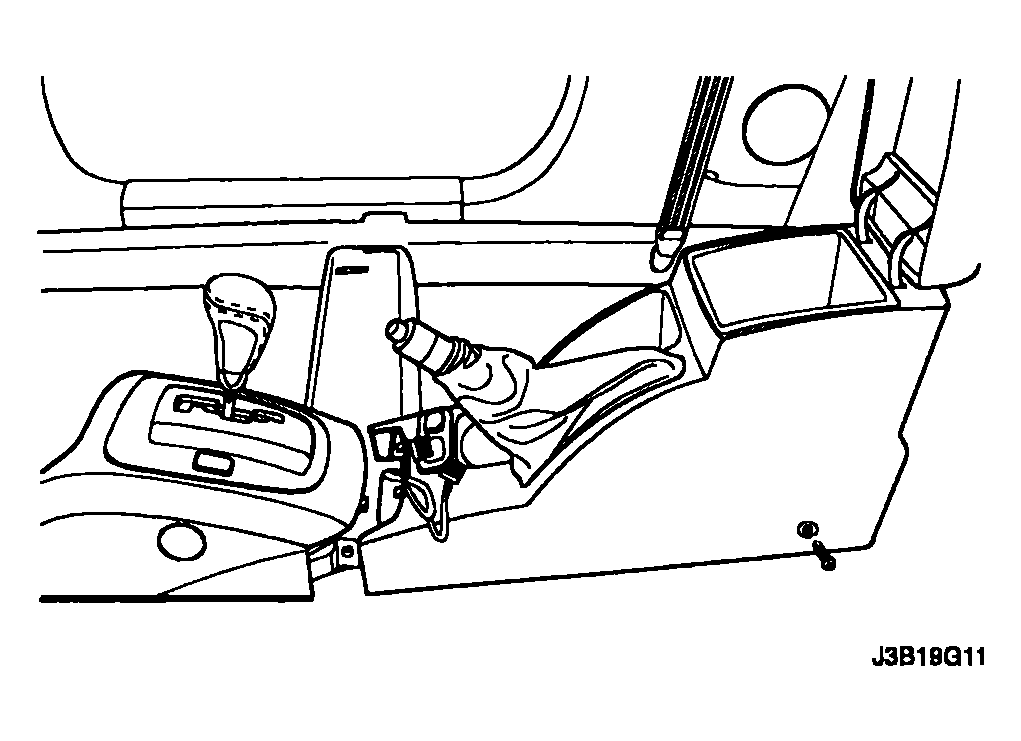

    Fig 1: Installing Screws To Rear Portion Of Floor Console
    G04104622Courtesy of SUZUKI OF AMERICA CORP.
