Front Seatback Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat from the vehicle. Refer to "FRONT BUCKET SEAT REMOVAL AND INSTALLATION :".
  2. Remove the each seat trim.

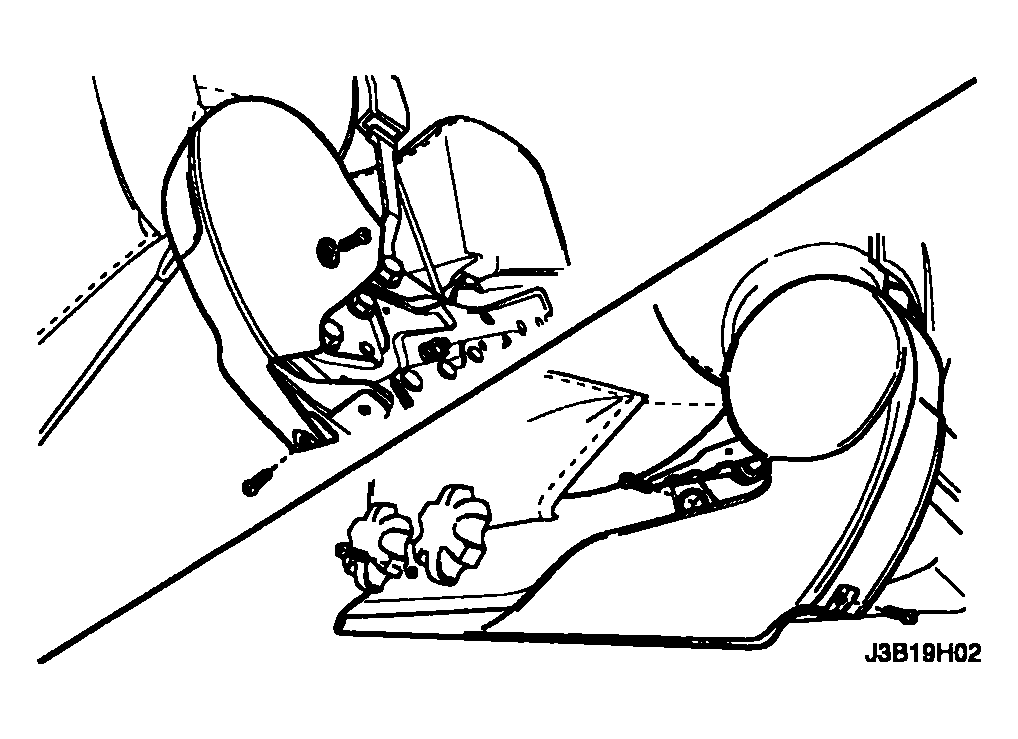

    Fig 1: Removing Seat Trim
    G04104560Courtesy of SUZUKI OF AMERICA CORP.
  3. Disconnect the electrical connectors.
  4. Remove the bolts and the seatback.

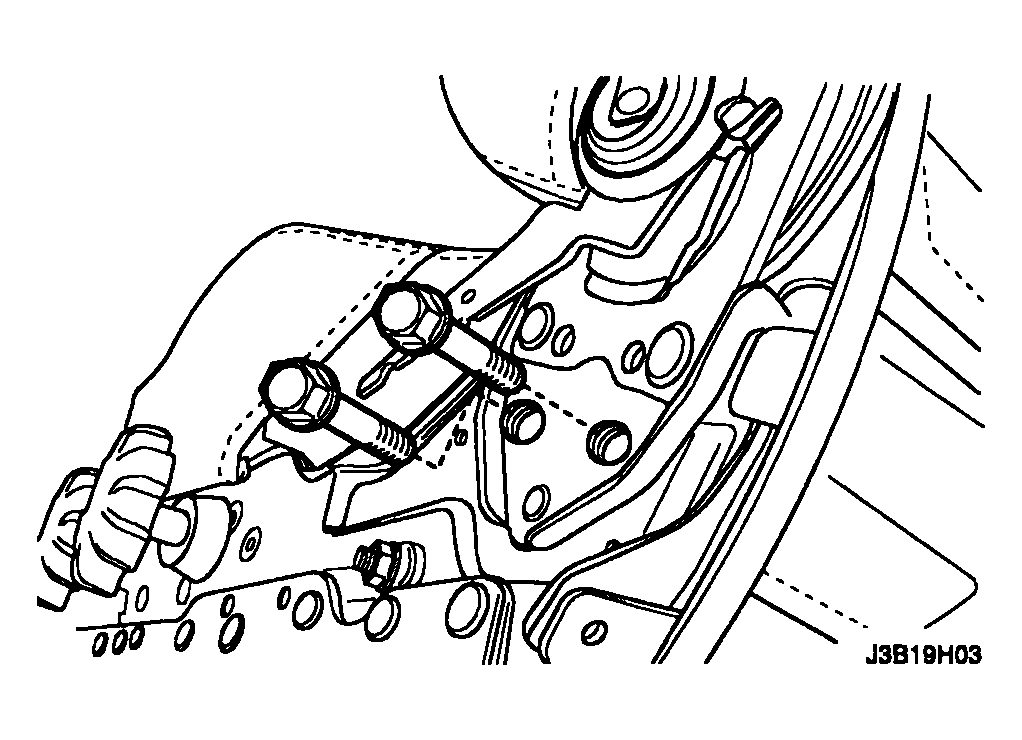

    Fig 2: Removing Bolts And Seatback
    G04104561Courtesy of SUZUKI OF AMERICA CORP.
