Front Seat Trim Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

Install the front seat trim with the screws.
Tighten

Tighten the front seat trim screws to 12 N.m (106 lb-in).
Install the front bucket seat in the vehicle. Refer to "FRONT BUCKET SEAT REMOVAL AND INSTALLATION :".

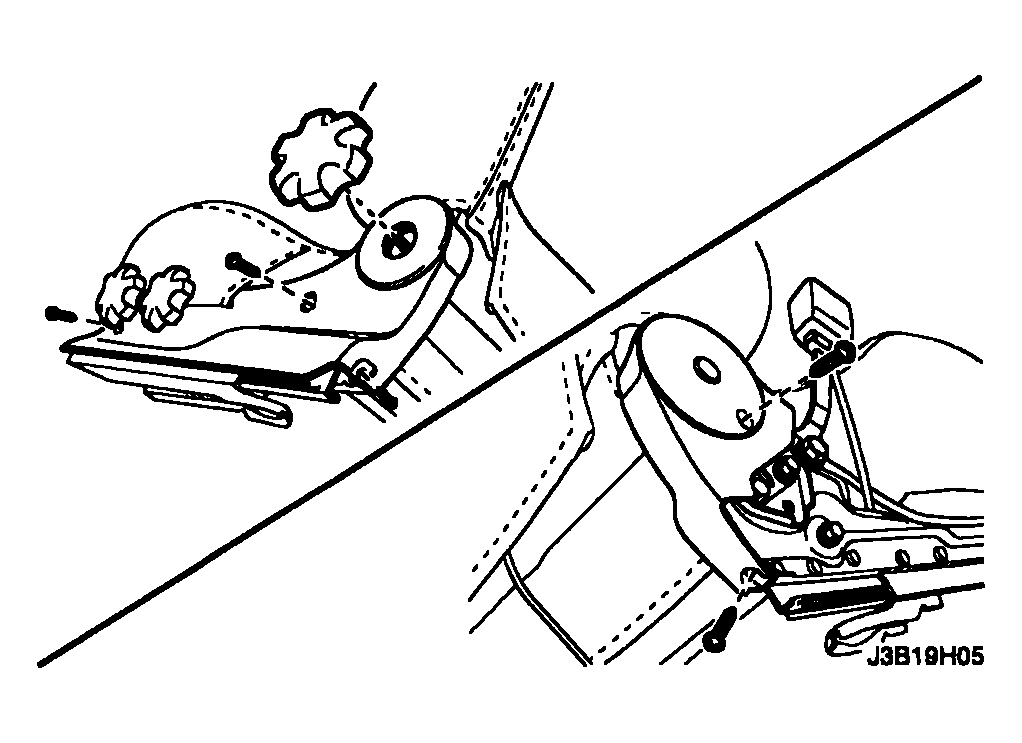

Fig 1: Installing Front Seat Trim With Screws
Courtesy of SUZUKI OF AMERICA CORP.
