Clock Spring Removal and Installation: Removal

WARNING: This page is about a different car, the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, and 2007 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The Sensing and Diagnostic Module (SDM) can maintain sufficient voltage to deploy the airbags and pretensioners for 1 minute after the ignition is OFF and the fuse has been removed. If the airbags and pretensioners are not disconnected, do not begin service until 1 minute has passed after disconnecting power to SDM. If the airbags are disconnected, service can be done immediately without waiting for 1-minute time period to expire. Failure to temporarily disable the SIR during service can result in unexpected deployment, personal injury and unnecessary SIR repairs.

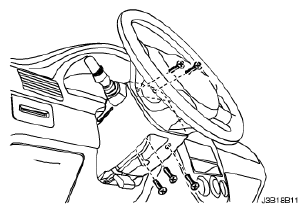

Fig 1: Identifying Screws From Upper And Lower Steering Column Covers
G04817492Courtesy of SUZUKI OF AMERICA CORP.
  1. Disconnect the negative battery cable.
  2. Remove the driver airbag module. Refer to Driver Airbag Module Removal and Installation  .
  3. Remove the steering wheel. Refer to STEERING WHEEL REMOVAL AND INSTALLATION .
  4. Remove the screws from the upper and lower steering column covers. And remove the covers.
  5. Remove the driver side knee bolster and instrument panel lower cover.
  6. Disconnect the driver airbag, horn and connectors from the lower steering column.
  7. Remove the screws and discard them.
  8. Remove the clock spring from the steering shaft.
    Fig 2: Identifying Clock Spring From Steering Shaft
    G04817413Courtesy of SUZUKI OF AMERICA CORP.
