Side Airbag Module

WARNING: This page is about a different car, the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, and 2007 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Tempering with side airbag module creates the risk of an injury from unexpected deployments. Therefore, the driver airbag module should never be disassembled.

The side airbag modules are in the driver's and passenger's seats. The side airbag module contains an igniter charge and a gas generator to inflate the folded airbag.

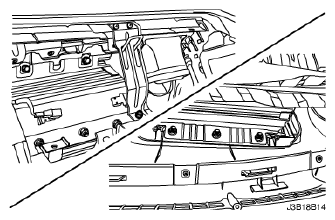

Fig 1: Identifying Side Airbag Module
G04817411Courtesy of SUZUKI OF AMERICA CORP.
