Timing Belt Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the timing mark on the crankshaft gear with the notch on the bottom of the rear timing belt cover.

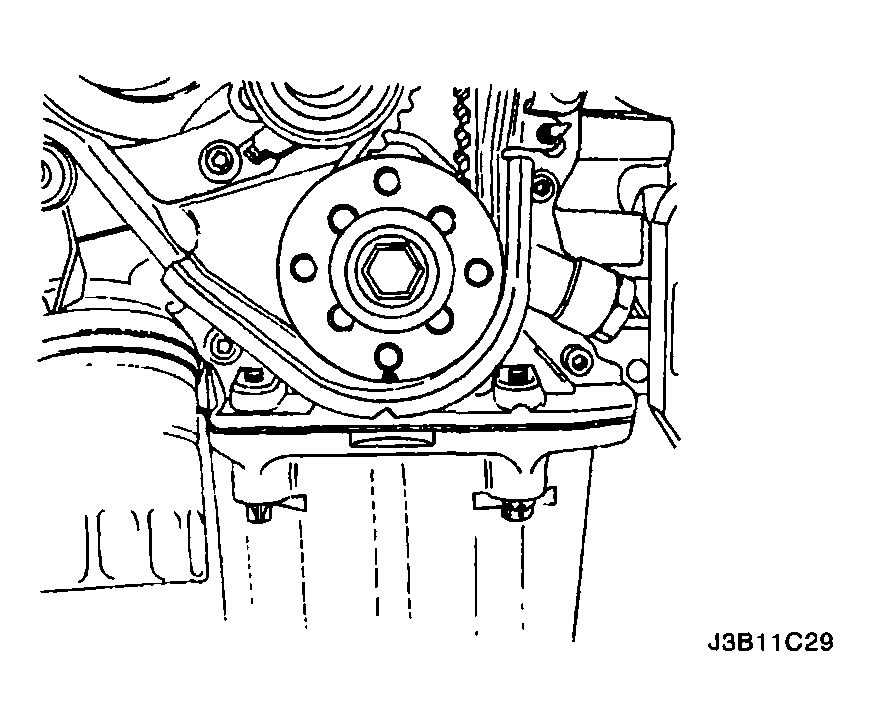

    Fig 1: Aligning Timing Mark On Crankshaft Gear With Notch On Bottom Of Timing Belt Cover
    G04102702Courtesy of SUZUKI OF AMERICA CORP.
  2. Align the timing marks on the camshaft gears, using the intake gear mark for the intake gear and the exhaust gear mark for the exhaust gear.

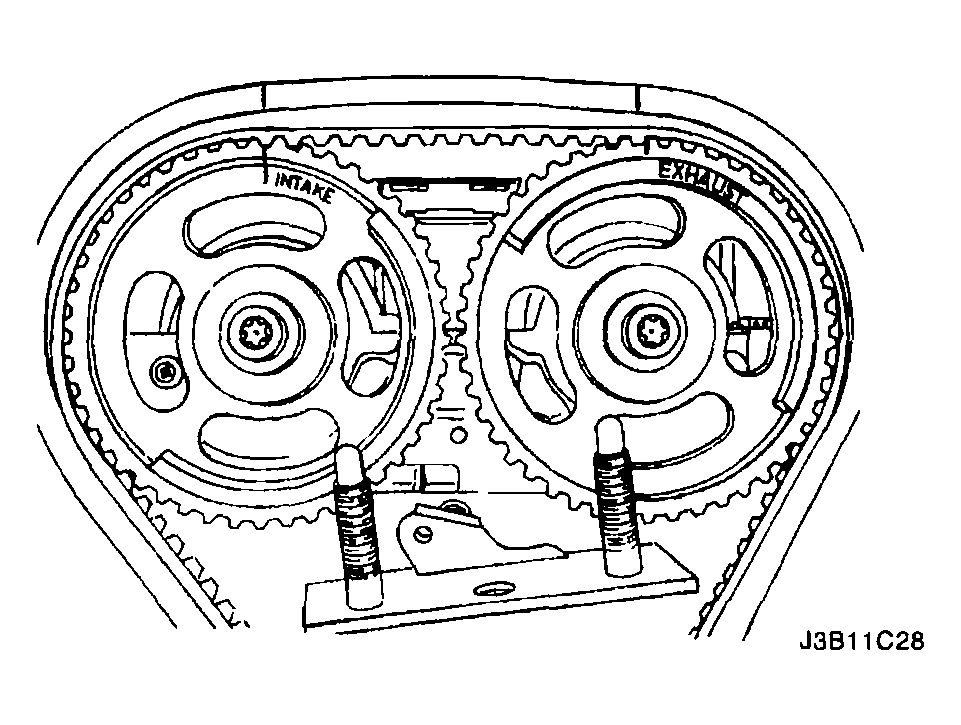

    Fig 2: Aligning Camshaft Gears With Notch On Camshaft Cover
    G04102703Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the timing belt.

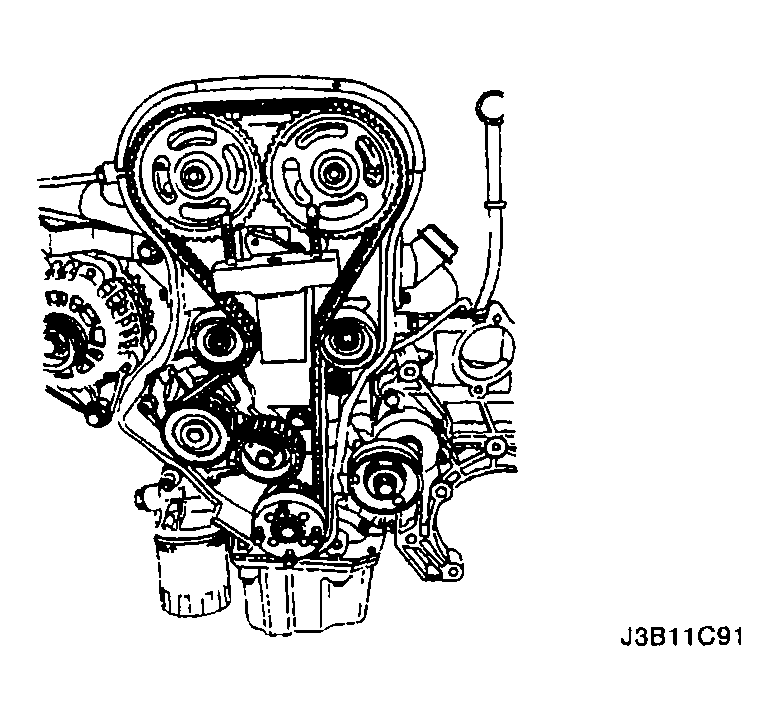

    Fig 3: Installing Timing Belt
    G04102704Courtesy of SUZUKI OF AMERICA CORP.
  4. Turn the hex-key tab in a clockwise direction to tension the belt. Turn until the pointer aligns with the notch.
  5. Install the automatic tensioner bolt.

    Tighten

    Tighten the automatic tensioner bolt to 25 N.m (18 lb-ft).

  6. Rotate the crankshaft two full turns clockwise using the crankshaft pulley bolt.
  7. Recheck the automatic tensioner pointer.

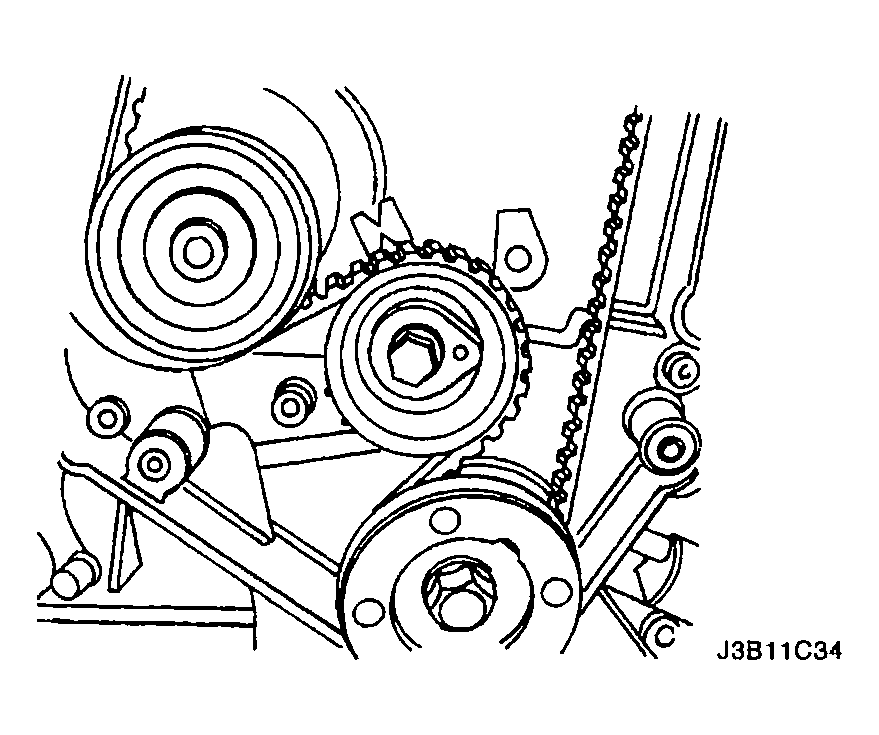

    Fig 4: Rechecking Automatic Tensioner Pointer
    G04102705Courtesy of SUZUKI OF AMERICA CORP.
  8. Install the front timing belt cover.
  9. Install the front timing belt cover bolts.

    Tighten

    Tighten the front timing belt cover bolts to 6 N.m (53 lb-in).

  10. Install the right engine mount bracket.

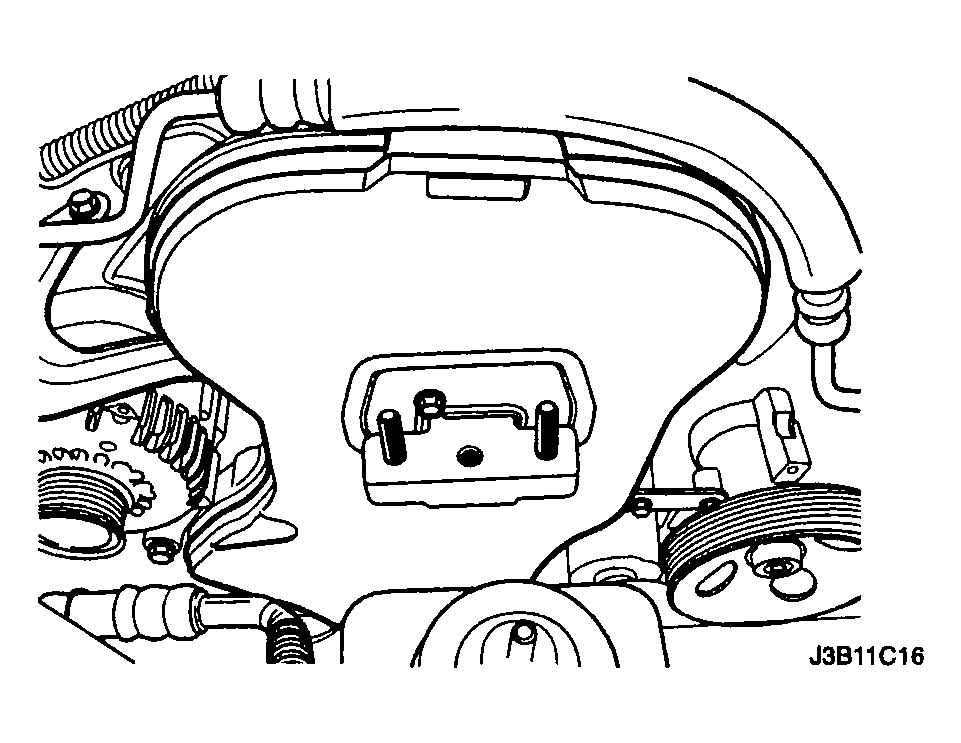

    Fig 5: Installing Right Engine Mount Bracket
    G04102706Courtesy of SUZUKI OF AMERICA CORP.
  11. Install the crankshaft pulley.
  12. Install the crankshaft pulley bolts.

    Tighten

    Tighten the crankshaft pulley bolts to 20 N.m (15 lb-ft).

  13. Install the serpentine accessory drive belt. Refer to "SERPENTINE ACCESSORY DRIVE BELT REMOVAL AND INSTALLATION :".
  14. Install the right front wheel well splash shield.
  15. Install the right front wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
  16. Install the air cleaner housing.
  17. Install the air cleaner housing bolts.

    Tighten

    Tighten the air cleaner housing bolts to 10 N.m (89 lb-in).

  18. Connect the air cleaner outlet hose to the throttle body.
  19. Connect the breather tube to the camshaft cover.
  20. Connect the MAT sensor connector.
  21. Connect the negative battery cable.

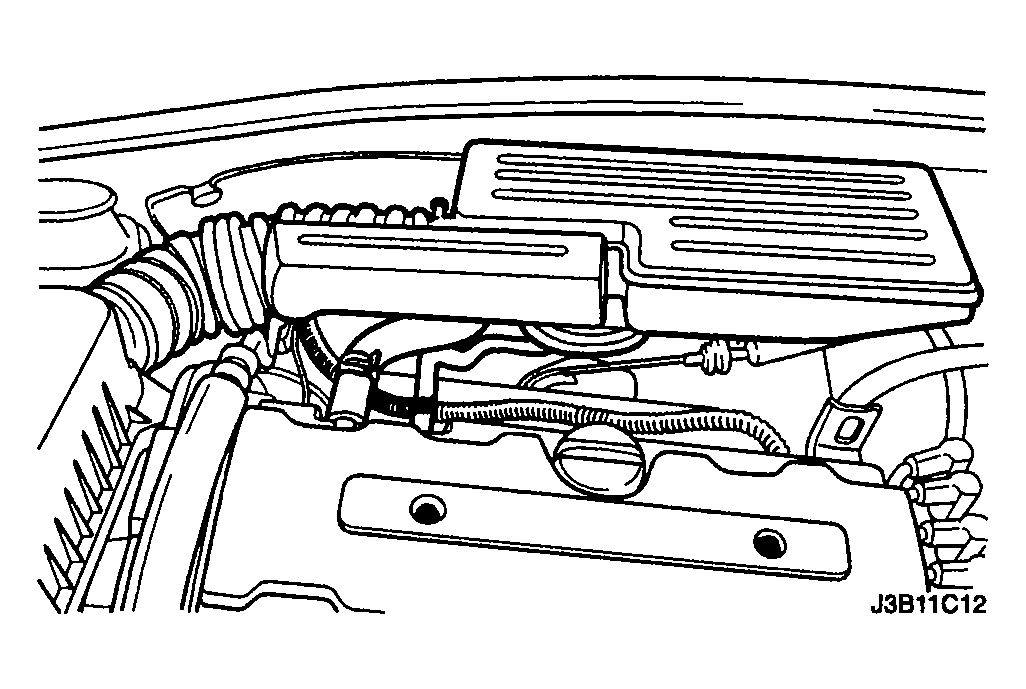

    Fig 6: Connecting Breather Tube To Camshaft Cover
    G04102708Courtesy of SUZUKI OF AMERICA CORP.
