Engine Mount Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Support the engine assembly using the engine assembly support fixture J-28467-B, and the engine assembly support channel X-28467-560.
  3. Disconnect the manifold air temperature (MAT) sensor connector.
  4. Disconnect the air cleaner outlet hose from the throttle body.
  5. Remove the air cleaner housing bolts.
  6. Remove the air cleaner housing.

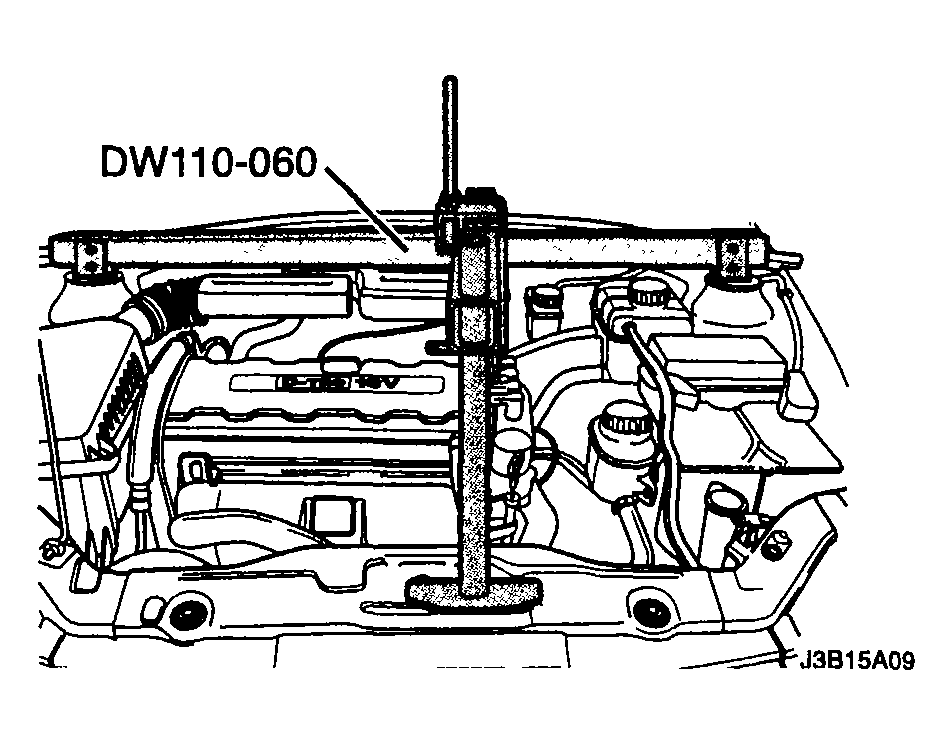

    Fig 1: Supporting Engine Assembly
    G04102709Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove the right front splash shield.
  8. Remove the engine mount bracket retaining bolts.
  9. Remove the engine mount bracket.
  10. Remove the serpentine accessory drive belt. Refer to "SERPENTINE ACCESSORY DRIVE BELT REMOVAL AND INSTALLATION :".

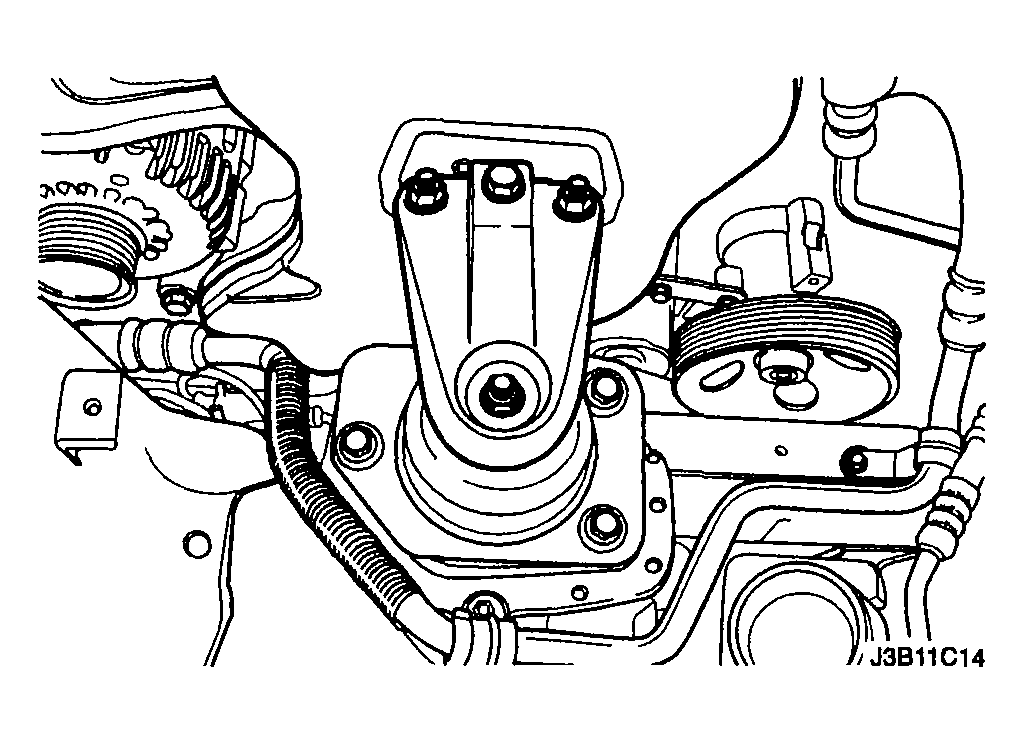

    Fig 2: Removing Engine Mount Bracket
    G04102710Courtesy of SUZUKI OF AMERICA CORP.
  11. Remove the front timing belt cover bolts.
  12. Align the crankshaft pulley timing mark with the pointer, and the camshaft gears with the timing marks on the rear cover, by turning the crankshaft gear bolt.
  13. Loosen the timing belt automatic tensioner bolt.
  14. Turn the hex-key tab to relieve belt tension.
  15. Remove the timing belt idler pulley bolt and nut.
  16. Remove the timing belt idler pulley.
  17. Remove the engine mount retaining bolts.
  18. Remove the engine mount.

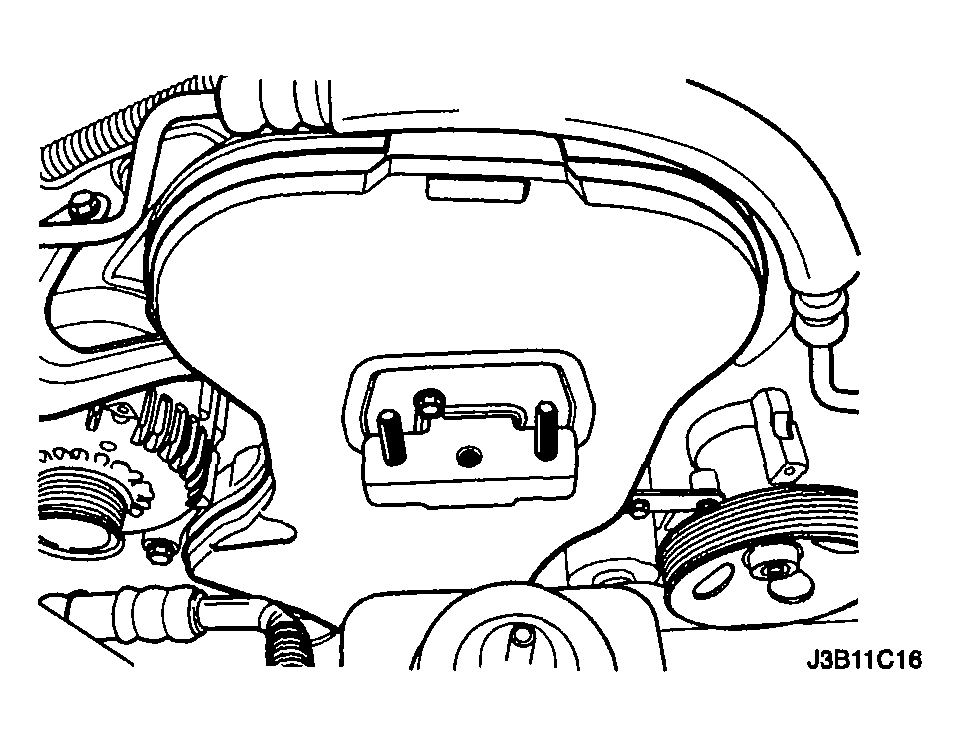

    Fig 3: Removing Engine Mount
    G04102711Courtesy of SUZUKI OF AMERICA CORP.
