Lower End Location

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

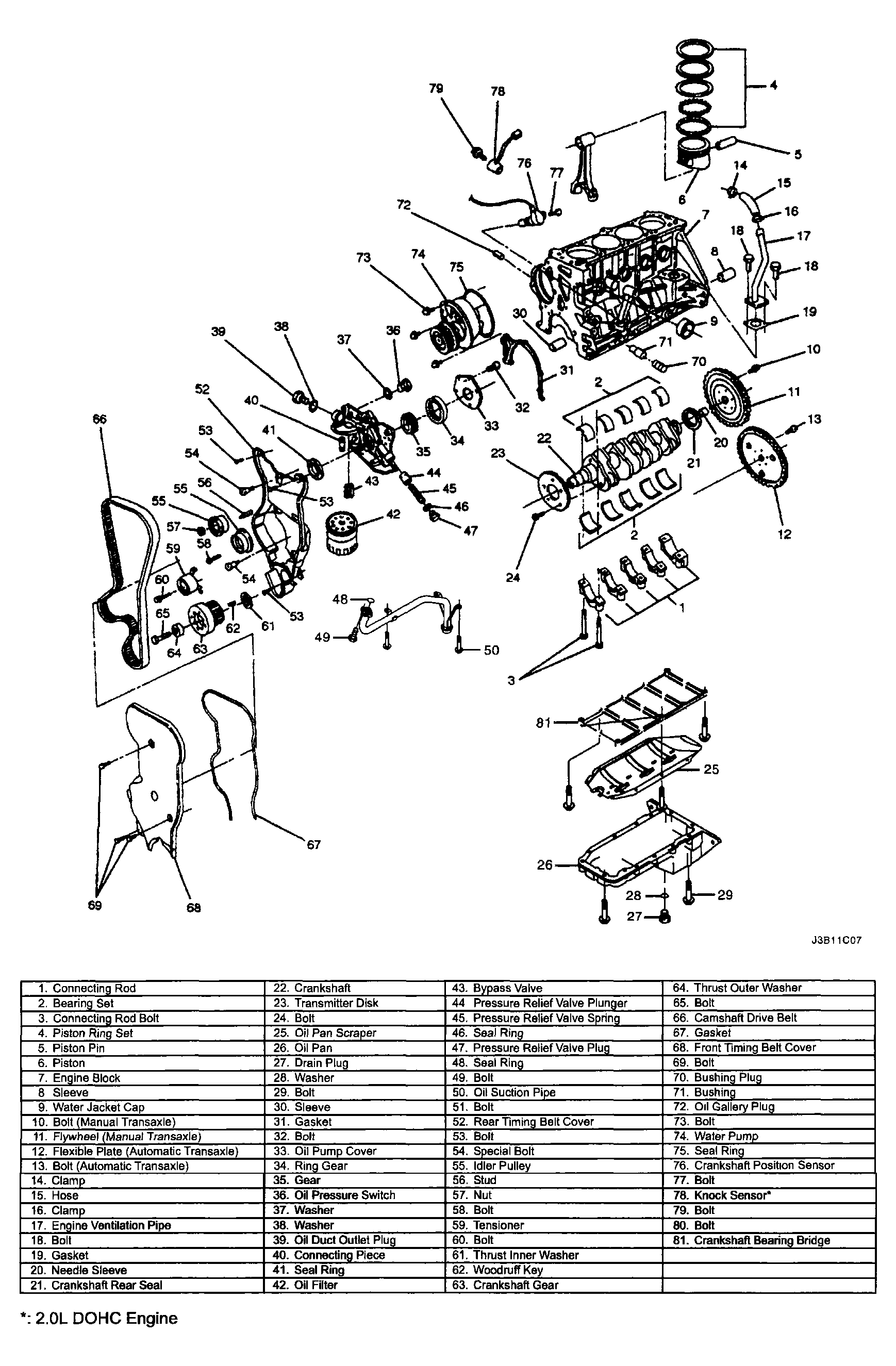

Fig 1: Identifying Engine - Lower End Component Location
G04102635Courtesy of SUZUKI OF AMERICA CORP.
