Fender Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

Install the fender with the upper fender bolts.
Tighten:

Tighten the upper fender bolts to 10 N.m (89 lb-in.).

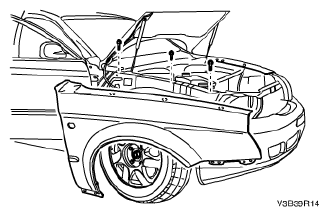

Fig 1: Identifying Upper Fender & Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Reposition the cowl vent grille weatherstrip to its original position.
Install the bolt at the base of the A-pillar.
Tighten:

Tighten the A-pillar fender bolt to 10 N.m (89 lb-in.).

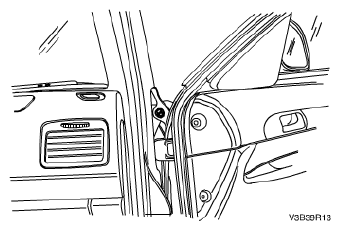

Fig 2: Identifying Bolt At Base Of A-Pillar
Courtesy of SUZUKI OF AMERICA CORP.
Install the bolts at the base of the fender.
Tighten:

Tighten the lower fender bolts to 10 N.m (89 lb-in.).
Install the rocker panel molding. Refer to ROCKER PANEL MOLDING INSTALLATION .
Install the front fender bolts behind the front fascia.
Tighten:

Tighten the front fender bolts to 10 N.m (89 lb-in.).

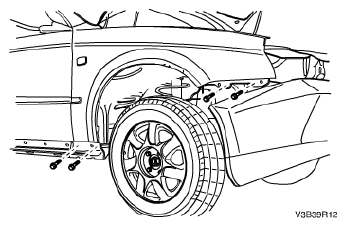

Fig 3: Identifying Fender Base & Front Fascia Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the front fascia to its original position.
Install the bolts securing the front fascia to the fender.
Tighten:

Tighten the front fascia-to-fender bolts to 2.5 N.m (22 lb-in.).
Install the front headlamp to its original position.
Install the front wheel well splash shield. Refer to Front Wheel Well Splash Shield Installation .

Fig 4: Identifying Front Fascia-To-Fender Bolts
Courtesy of SUZUKI OF AMERICA CORP.
