Floor Console Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connectors.
Install the floor console.
Install the front portion of the floor console with the screws.
Tighten:

Tighten the floor console screw to 4 N.m (35 lb-in.).

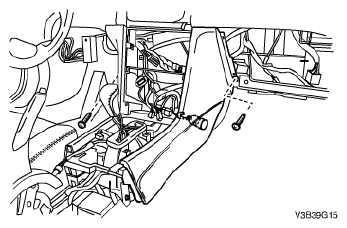

Fig 1: Identifying Floor Console Front Portion Screws
Courtesy of SUZUKI OF AMERICA CORP.
Install the screws from the rear portion of the floor console.
Tighten:

Tighten the floor console screw to 4 N.m (35 lb-in.).

Fig 2: Identifying Floor Console Rear Portion Screws
Courtesy of SUZUKI OF AMERICA CORP.
Install the glove box, instrument panel lower cover, cigar lighter trim panel and stereo cassette player.
Install the console cover.
Connect the negative battery cable.

Fig 3: Identifying Floor Console Cover & Screws
Courtesy of SUZUKI OF AMERICA CORP.
