Outside Door Handle Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the outside door handle and the lock rods.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  2. Install the door handle with the bolts.

    Tighten:

    Tighten the outside door handle bolts to 4.5 N.m 40 lb-in.).

  3. Install the door seal trim. Refer to DOOR SEAL TRIM INSTALLATION .

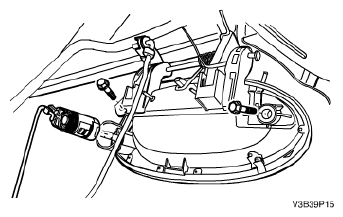

    Fig 1: Identifying Door Handle With Bolts
    G04720482Courtesy of SUZUKI OF AMERICA CORP.
