Headlamps Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headlamp bulbs.
  2. Connect the headlamp bulb electrical connectors.
  3. Install the cap that conceals the headlamp bulbs.
    Fig 1: Identifying Headlamp Bulbs
    G04720312Courtesy of SUZUKI OF AMERICA CORP.
  4. Connect the headlamp assembly electrical connectors.

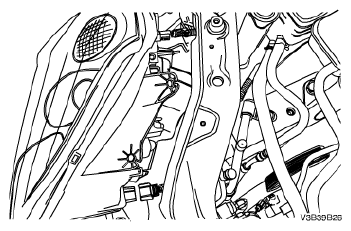

    Fig 2: Identifying Headlamp Assembly Electrical Connectors
    G04720311Courtesy of SUZUKI OF AMERICA CORP.
  5. Install the headlamp assembly with the bolts.

    Tighten:

    Tighten the headlamp assembly bolts to 7.5 N.m (66 lb-in.).

  6. Connect the negative battery cable.

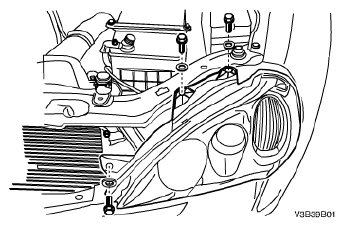

    Fig 3: Identifying Headlamp Assembly With Bolts
    G04720310Courtesy of SUZUKI OF AMERICA CORP.
