Vertical (Up / Down) Aiming Procedures

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ON the low beam headlamps and mark horizontal line and vertical line around high intensity zone as figure. This line is called "Cut Off Line".
  2. Adjust the vertical aiming screw with a "+" screw driver so that LINE A (horizontal line of cut off line) shall be placed within 100 mm (4 in.) upward and downward from the horizontal axis of HV point.
  3. Close the hood carefully and verify that the hood is securely closed.

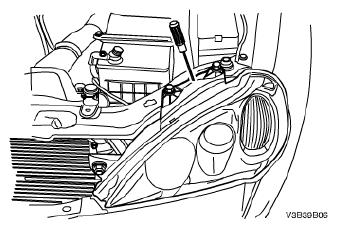

    Fig 1: Adjusting Vertical Aiming Screw
    G04720308Courtesy of SUZUKI OF AMERICA CORP.
