A/C Pressure Transducer Installation
WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

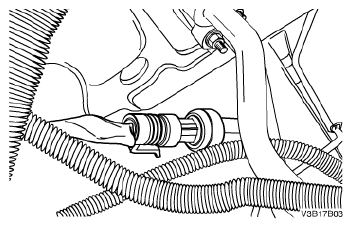

- Install the new O-ring seal on the transducer.
- Install the pressure transducer.
Tighten:
Tighten the pressure transducer to 7 N.m (62 lb-in.).
- Connect the wire connector.
- Connect the negative battery cable.
Courtesy of SUZUKI OF AMERICA CORP.
