A/C Compressor Relay Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Align the relay terminal contacts with the base receptacle.
Push the relay into the base until it is seated.
Connect the negative battery cable.

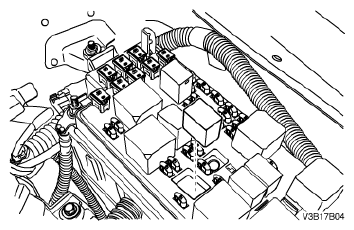

Fig 1: Identifying Engine Fuse Block & A/C Compressor Relay
Courtesy of SUZUKI OF AMERICA CORP.
