Power Transistor Removal

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the glove box lower panel cover. Refer to GLOVE BOX REMOVAL .
Disconnect the electrical connector at the resistor.
Remove the screws from the resistor.
Remove the resistor from the A/C module by gently pulling the resistor downward.

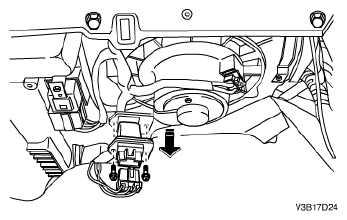

Fig 1: Removing Power Resistor From A/C Module
Courtesy of SUZUKI OF AMERICA CORP.
