Power Transistor Installation
WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

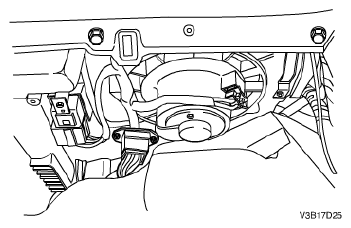

- Install the new resistor into the heater/air distributor case assembly with the screws.
Tighten:
Tighten the blower motor resistor screws to 6 N.m (53 lb-in.).
- Connect the electrical connector at the resistor.
- Connect the negative battery cable.
- Confirm the proper performance of the blower.
- Install the glove box lower panel cover. Refer to GLOVE BOX INSTALLATION .
