Mode Door Motor Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mode door motor.
  2. Install the motor retaining screws and tighten.

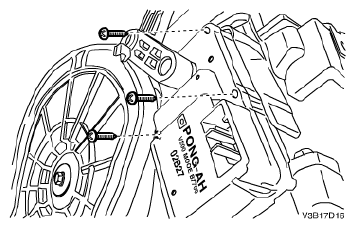

    Fig 1: Identifying Mode Door Motor & Retaining Bolts
    G04720107Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the motor lever by pressing it onto its shaft.
  4. Install the actuating rod.
  5. Connect the electrical connector.
  6. Connect the negative battery cable.

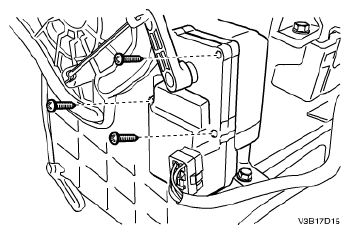

    Fig 2: Identifying Mode Door Motor, Electrical Connector & Bolts
    G04720106Courtesy of SUZUKI OF AMERICA CORP.
