In-Car Temperature Sensor Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the in-car sensor.
  2. Install the in-car sensor retaining screws and tighten.
  3. Install the air inlet tube and connect the electrical connector.
  4. Install the instrument panel under cover. Refer to INSTRUMENT PANEL INSTALLATION .
  5. Connect the battery negative cable.

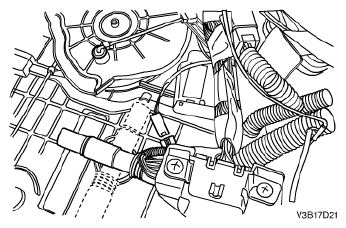

    Fig 1: Identifying Temperature Sensor & Tube Screws
    G04720118Courtesy of SUZUKI OF AMERICA CORP.
