Heater Core Removal

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the aircon module from the vehicle. Refer to A/C Module Removal .
Remove the wiring harness from the aircon module.

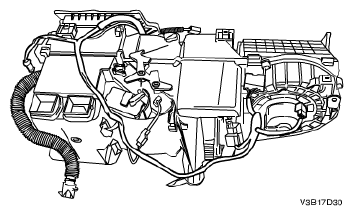

Fig 1: Identifying Wiring Harness & Aircon Module
Courtesy of SUZUKI OF AMERICA CORP.
Remove the temperature motor lever and actuator rod.

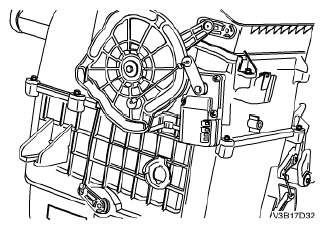

Fig 2: Identifying Temperature Motor Lever And Actuator Rod
Courtesy of SUZUKI OF AMERICA CORP.
Remove the mode motor ventilation link.

Fig 3: Identifying Mode Motor Ventilation Link
Courtesy of SUZUKI OF AMERICA CORP.
Remove the air inlet case with the screws.

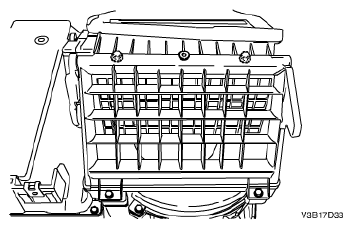

Fig 4: Identifying Air Inlet Case & Screws
Courtesy of SUZUKI OF AMERICA CORP.
Remove the evaporator core case cover.

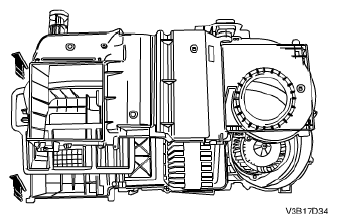

Fig 5: Identifying Evaporator Core Case Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove the heater core cover with the screws.

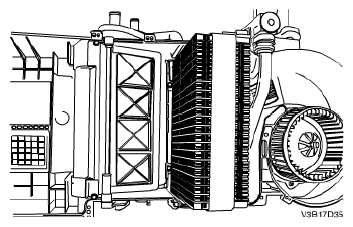

Fig 6: Identifying Heater Core Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove the heater core clip.

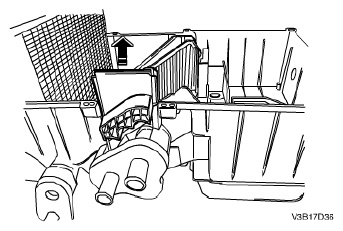

Fig 7: Identifying Heater Core Clip
Courtesy of SUZUKI OF AMERICA CORP.
Remove the heater core from the case.

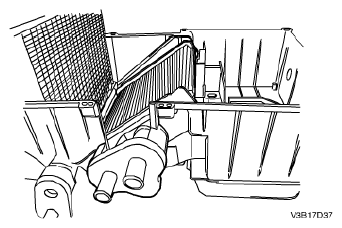

Fig 8: Identifying Heater Core
Courtesy of SUZUKI OF AMERICA CORP.
