Ambient Air Temperature Sensor Installation
WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

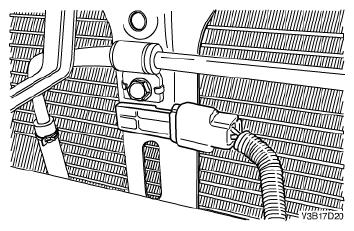

- Position the ambient air temperature sensor into its bracket.
- Install the retaining nut to the bracket.
Tighten:
Tighten the ambient air temperature retaining bracket nut to 6 N.m (53 lb-in.).
- Connect the electrical connector.
- Connect the negative battery cable.
