Heater Core Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Install the heater core into the case.

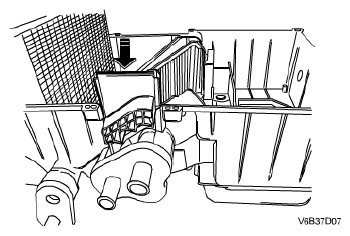

Fig 1: Identifying Heater Core
Courtesy of SUZUKI OF AMERICA CORP.
Install the heater core clip.

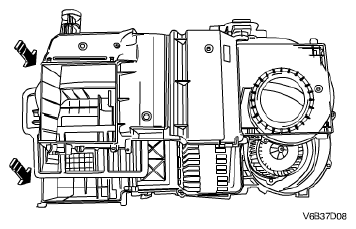

Fig 2: Installing Heater Core Clip
Courtesy of SUZUKI OF AMERICA CORP.
Install the heater core cover.
Install the tighten the screws that secure the heater core cover to the aircon module.

Fig 3: Identifying Heater Core Cover & Screws
Courtesy of SUZUKI OF AMERICA CORP.
Install the evaporator core case.
Install the tighten the screws that secure the evaporator core case cover to the heater/air distributor case assembly.

Fig 4: Installing Evaporator Core Case & Screws
Courtesy of SUZUKI OF AMERICA CORP.
Install the air inlet case with the screws.

Fig 5: Identifying Air Inlet Case & Screws
Courtesy of SUZUKI OF AMERICA CORP.
Install the motor and screws for the floor diverter.
Install the A/C module. Refer to Heater / Air Distributor Case Assembly Installation .

Fig 6: Identifying Mode Motor Ventilation Link
Courtesy of SUZUKI OF AMERICA CORP.
