Caliper Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the caliper
  2. Install the caliper mounting bolts.

    Tighten:

    Tighten the caliper mounting bolts to 27 N.m (19 lb-ft).

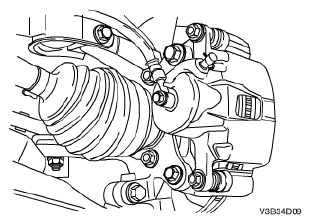

    Fig 1: Identifying Caliper Mounting Bolts
    G04719448Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the brake hose to the caliper with the bolt and the ring seals.

    Tighten:

    Tighten the caliper brake hose inlet bolt to 40 N.m (30 lb-ft).

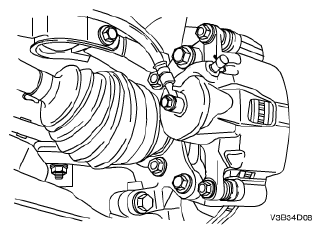

    Fig 2: Identifying Caliper Brake Hose Inlet Bolt And Ring Seals
    G04719447Courtesy of SUZUKI OF AMERICA CORP.
  4. Align the marks that were made when removing the front wheel, and install the wheel. Refer to WHEEL REMOVAL .
  5. Lower the vehicle.
  6. Fill the master cylinder reservoir to the proper level with clean brake fluid.
  7. Bleed the air out of the brake system. Refer to BLEEDING SYSTEM .

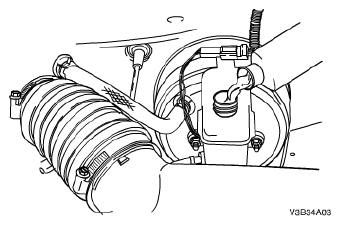

    Fig 3: Filling Master Cylinder Reservoir To Proper Level With Clean Brake Fluid
    G04719370Courtesy of SUZUKI OF AMERICA CORP.
