Proportioning Valve Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Install the proportioning valve to the bulkhead.
Tighten:

Tighten the proportioning valve nut to 16 N.m (12 lb-ft).
Connect the brake lines to the proportioning valve.
Tighten:

Tighten the proportioning valve brake lines to 16 N.m (12 lb-ft).

Fig 1: Identifying Proportioning Valve And Bulkhead Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install the brake lines to the hydraulic modulator.
Raise and suitably support the vehicle.
Bleed the brake system. Refer to Manual Bleeding the Brakes .
Lower the vehicle.

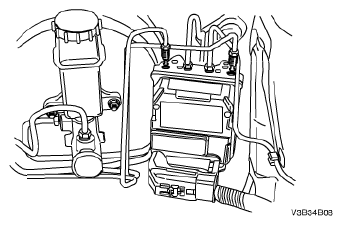

Fig 2: Removing/Installing Brake Lines From Hydraulic Modulator
Courtesy of SUZUKI OF AMERICA CORP.
