Non-EVAP-leak-check model

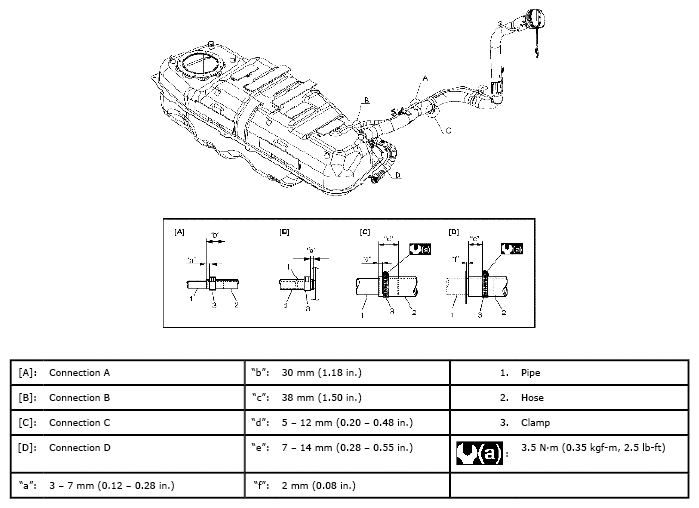

Fig 1: Identifying Non-EVAP-Leak-Check Model Fuel Hose Connection With Tightening Torques
G04847016Courtesy of SUZUKI OF AMERICA CORP.
