EVAP leak check model

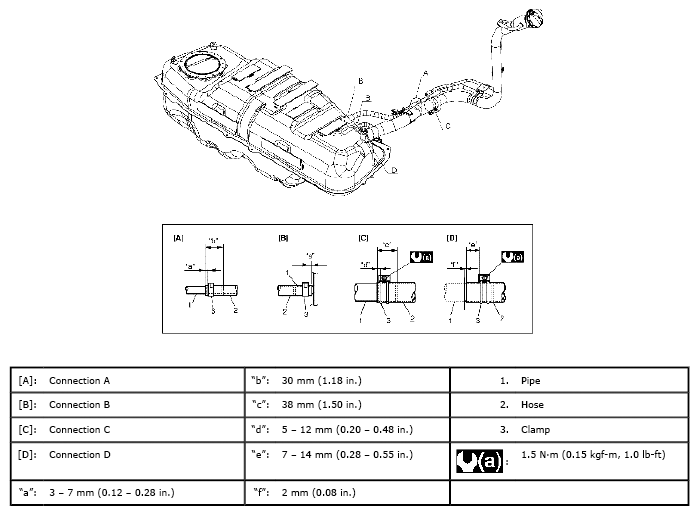

Fig 1: Identifying EVAP Leak Check Model Fuel Hose Connection With Tightening Torques
G04847015Courtesy of SUZUKI OF AMERICA CORP.
