DTC P0420: Catalyst System Efficiency Below Threshold (Bank-1)
>>
System and Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System and Wiring Diagram

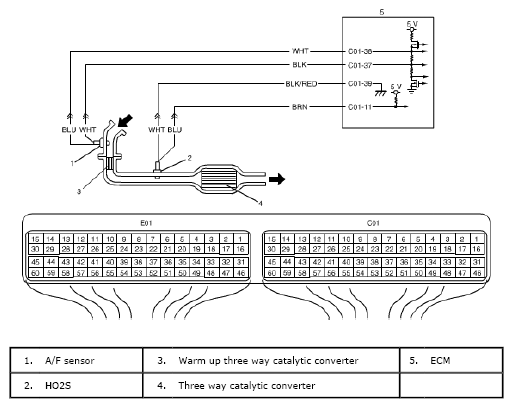

Fig 1: Catalyst System - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
