Rear Door Lock Assembly Components

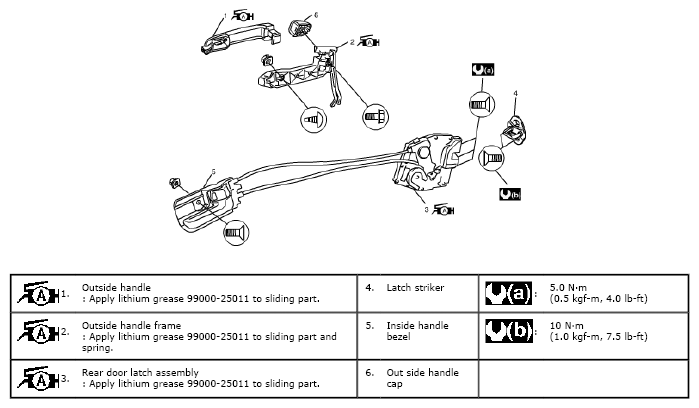

Fig 1: Identifying Rear Door Lock Assembly Components With Tightening Torques
G04849048Courtesy of SUZUKI OF AMERICA CORP.
