Overhaul

Rear Mounting Bracket Assembly Disassembly and Reassembly

Disassembly

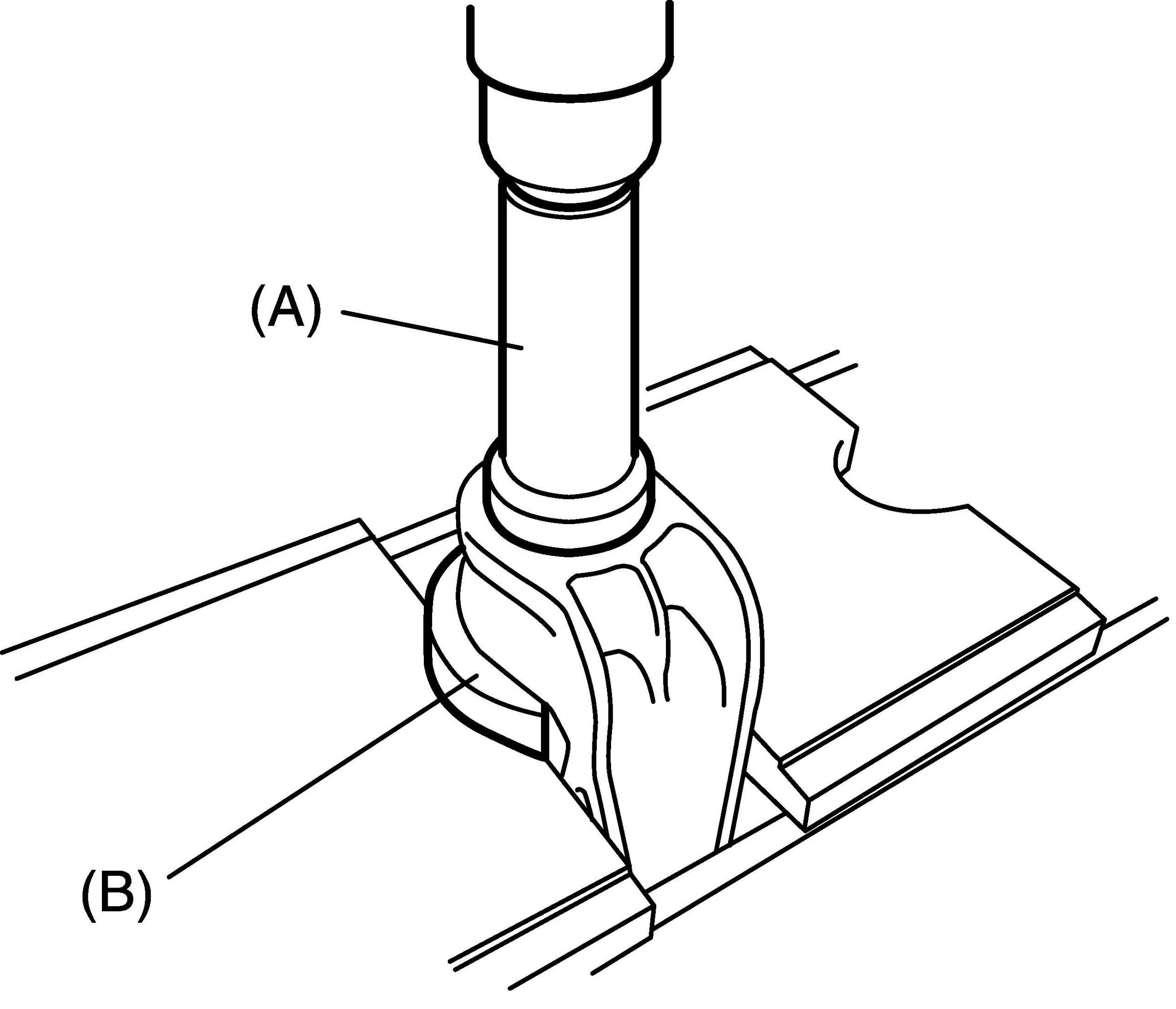

Drive out mountings from rear mounting bracket using special tool and hydraulic press.
Special Tool
(A): 09913-70123
(B): 09951-26020





Reassembly

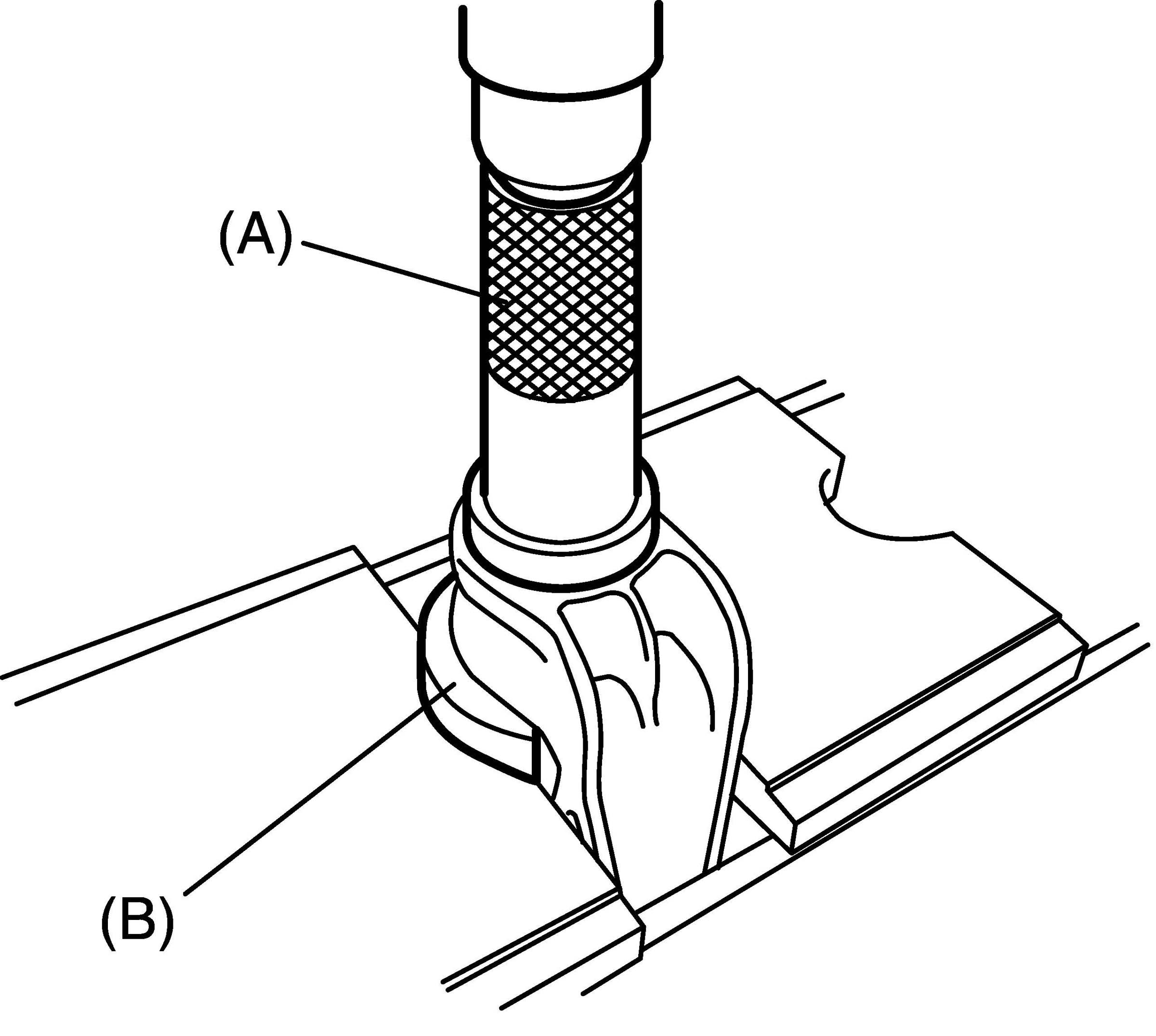

Press mountings in rear mounting bracket using special tool and hydraulic press with caring its installation position shown in figure.
Special Tool
(A): 09913-85210
(B): 09951-26020
