Back Up Light Switch Inspection

Back Up Light Switch Inspection

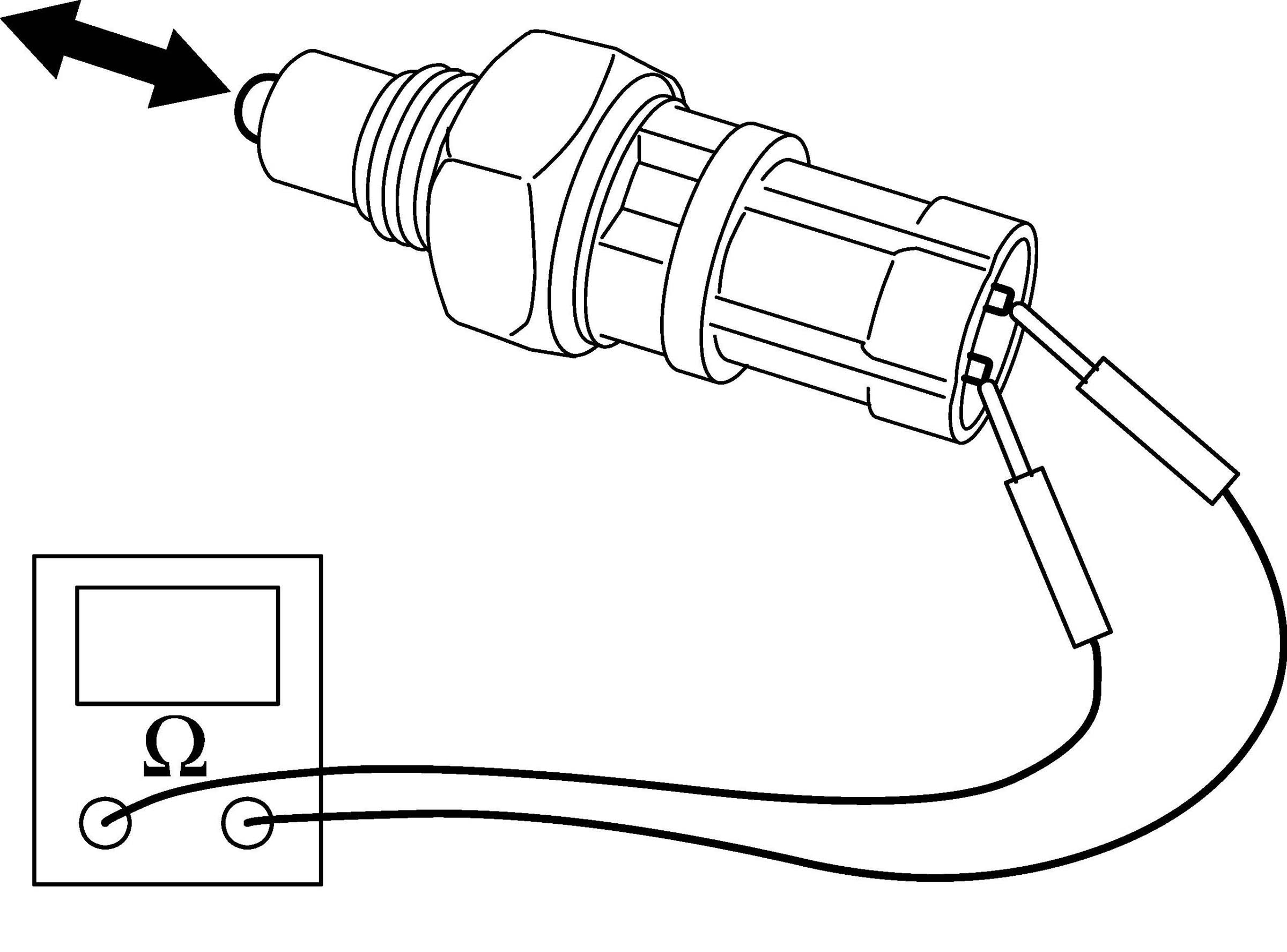

Check backup light switch for function using ohmmeter.
Switch ON (Push): Continuity
Switch OFF (Release): No continuity
