Body Electrical Control System Wiring Circuit Diagram

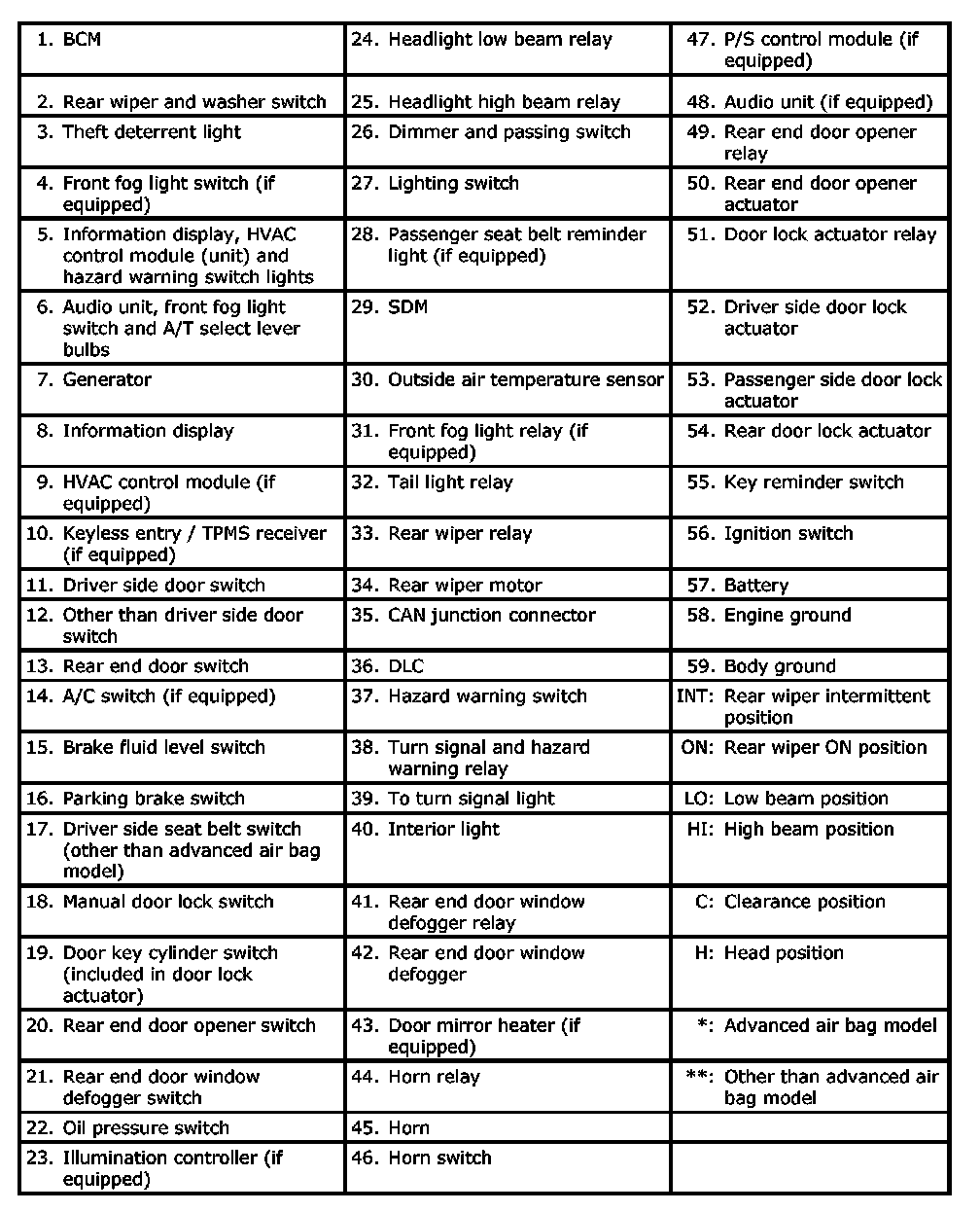

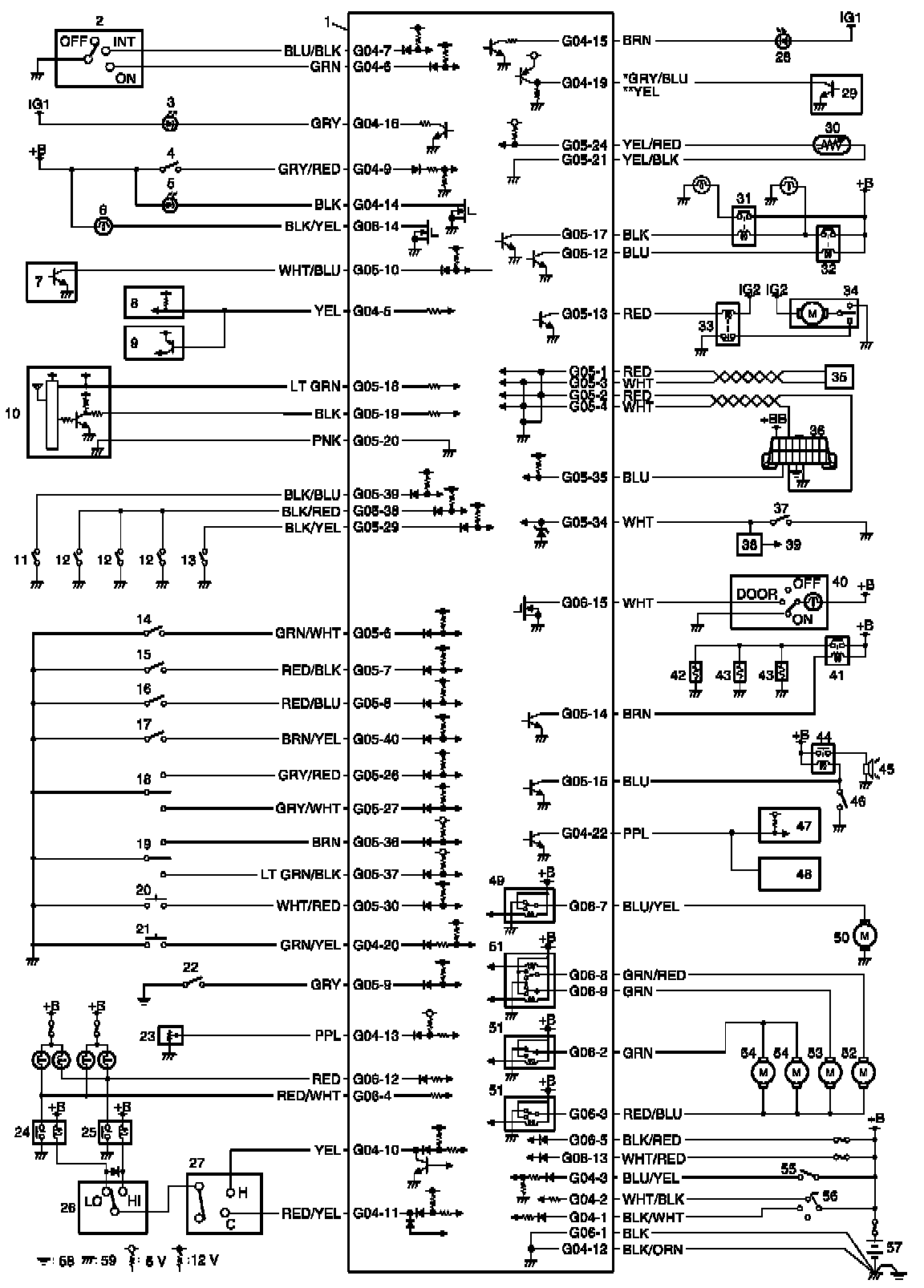

Body Electrical Control System Wiring Circuit Diagram (Part 1):
Body Electrical Control System Wiring Circuit Diagram (Part 2):
