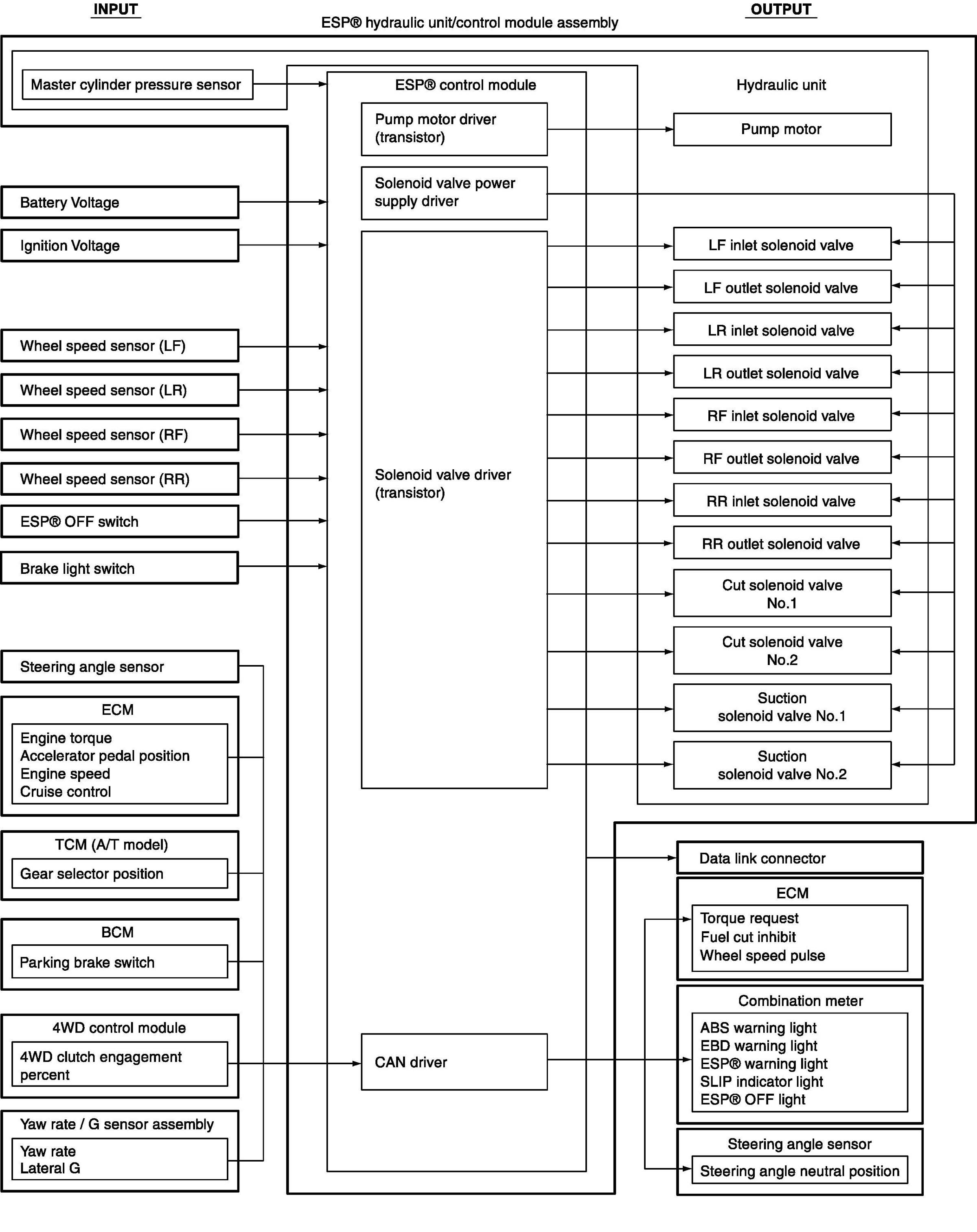

Electronic Stability Program Schematic
Electronic Stability Program Schematic
ESP(R) hydraulic unit/control module assembly
