ESP

DTC Table

CAUTION: Be sure to perform Electronic Stability Program Check before starting diagnosis.

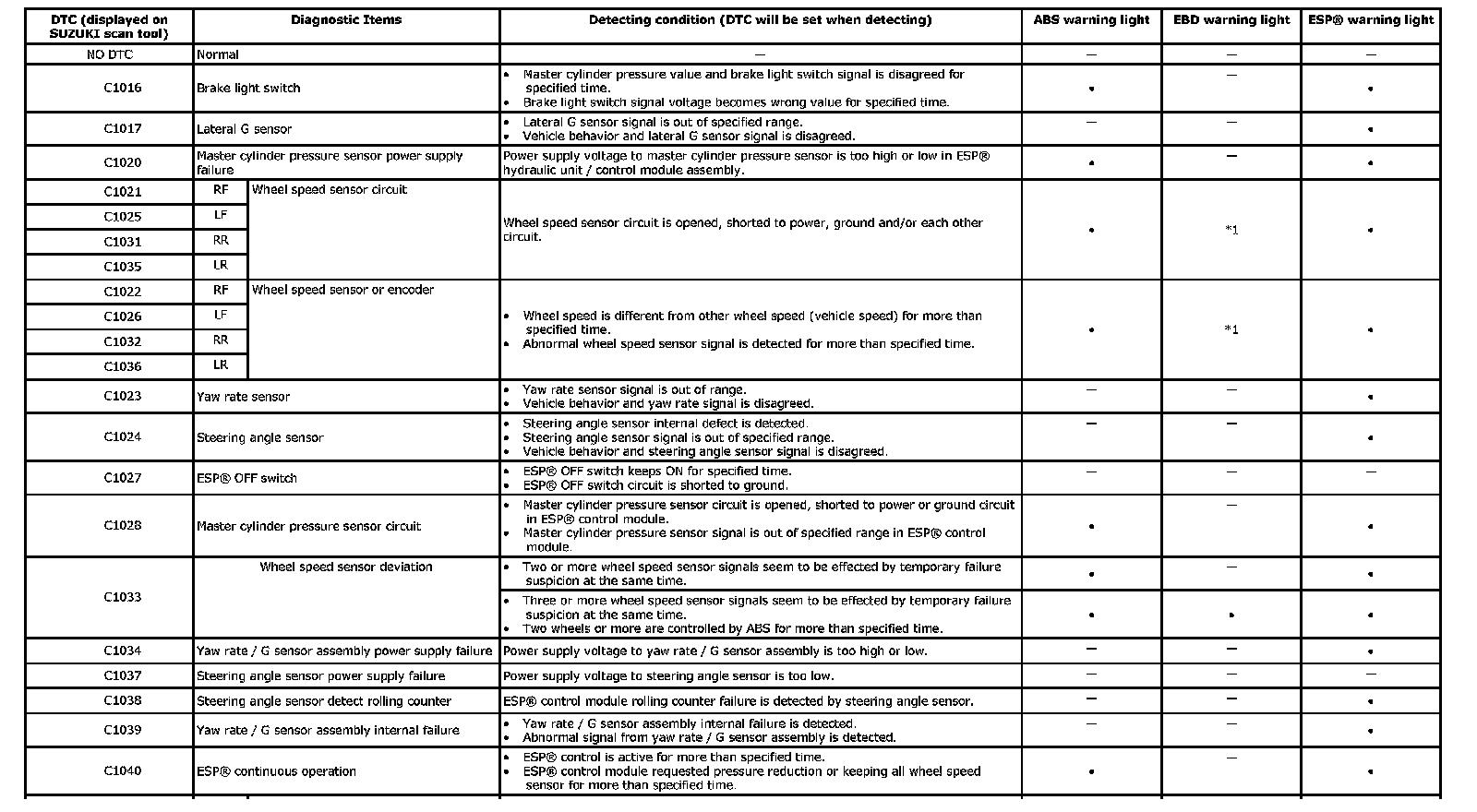

C1016-C1040:

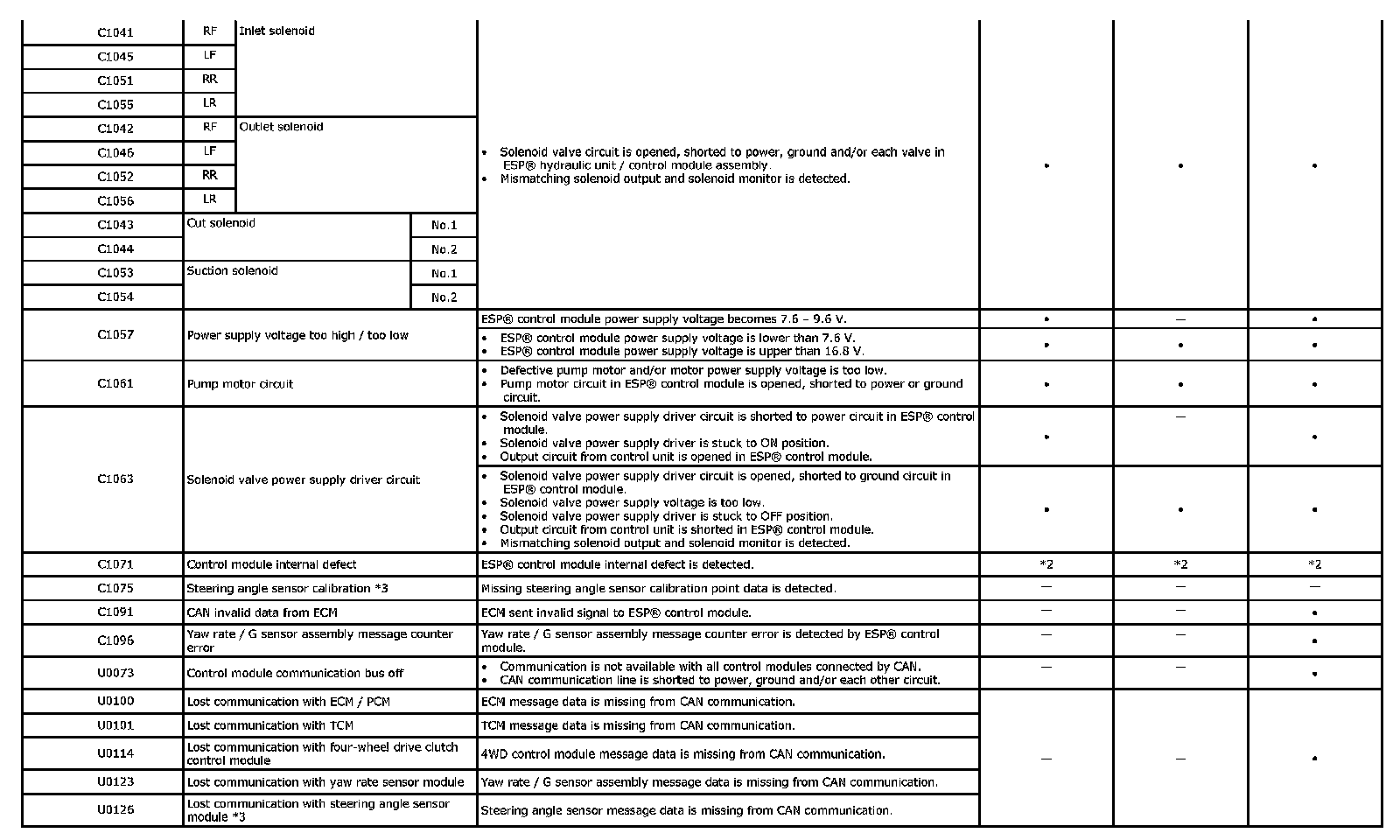

C1041-C1096, U0073-U0126:

NOTE:
^ "*" in ABS warning light, EBD warning light and ESP(R) warning light column of the above table means warning light is lit when DTC is detected.
^ *1: If three or more wheel speed sensor are defective, EBD warning light are lit.
^ *2: It is irregular whether warning lights can be lit by ESP(R) control module.
^ *3: SLIP indicator light flashes continuously at intervals of 1 Hz.
