Wiper Relay: Service and Repair

REAR WIPER RELAY REMOVAL AND INSTALLATION

Removal
1. Disconnect negative (-) cable at battery.

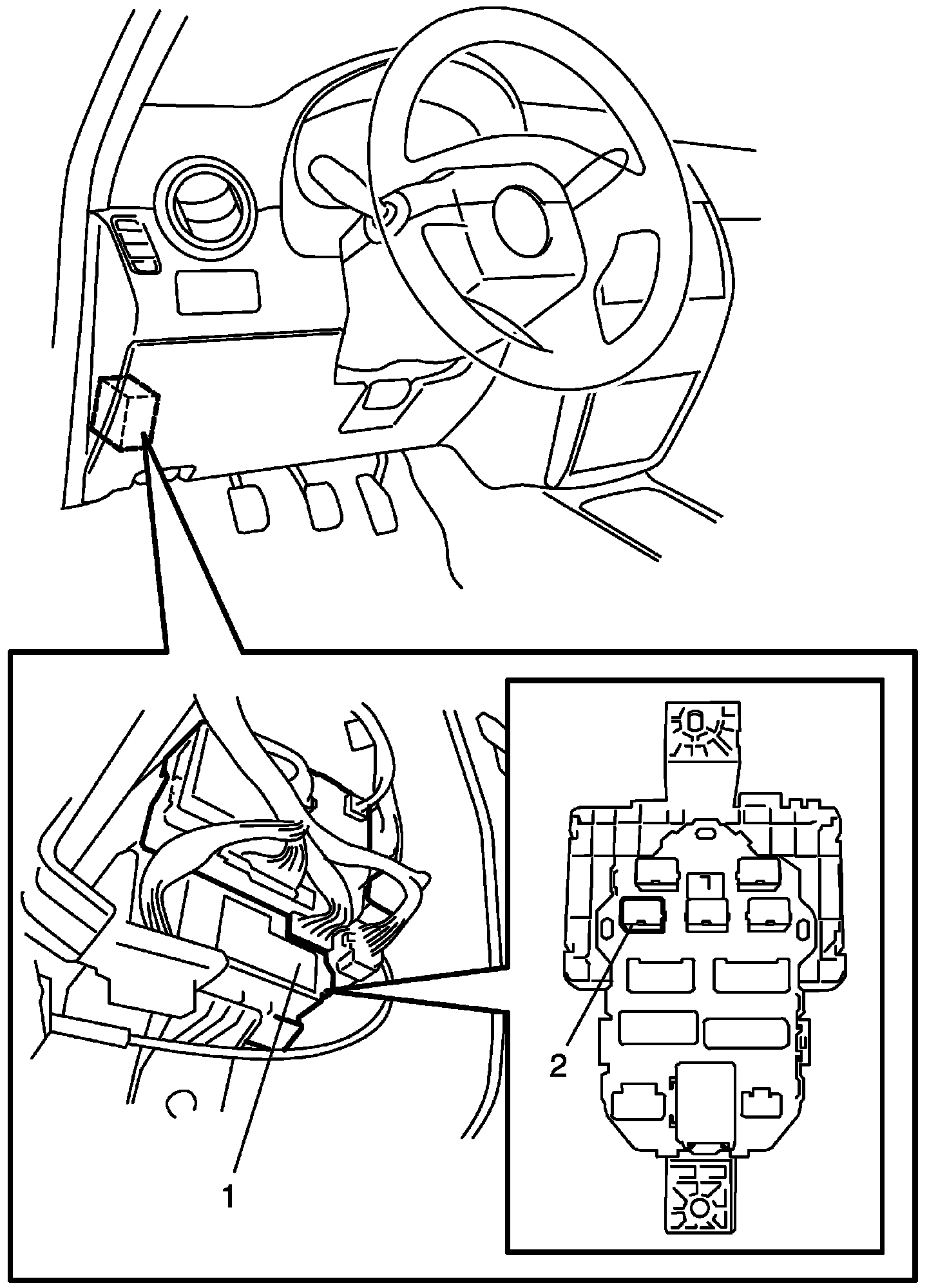

2. Remove junction block (1).
3. Remove rear wiper relay (2) from junction block.





Installation
Reference: Rear Wiper Relay Inspection
Reverse removal procedure for installation.
