Clutch Pedal Position Sensor / Switch: Service and Repair

Clutch Pedal Position (CPP) Switch Removal and Installation

Removal

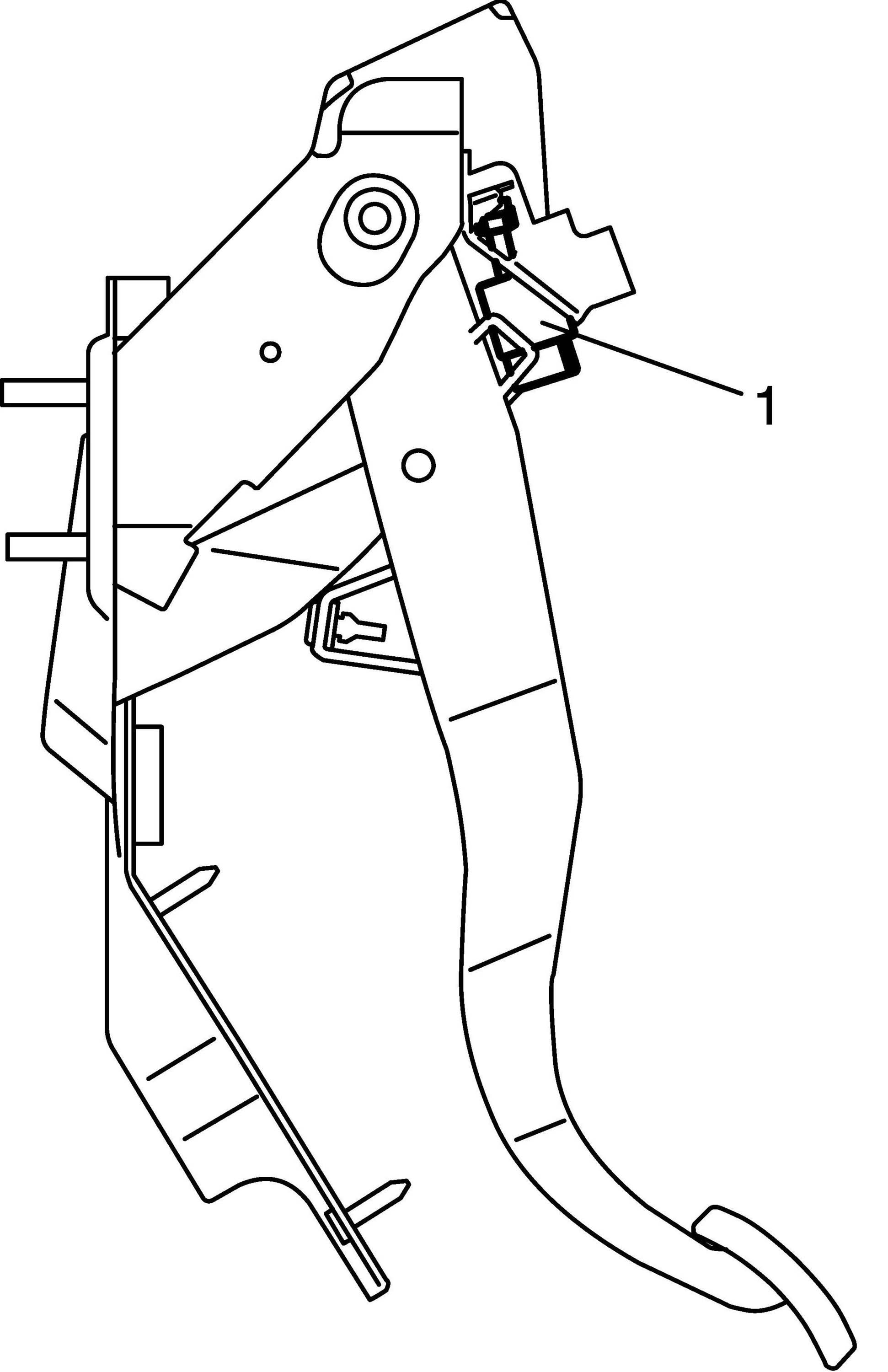

1. Disconnect connector of CPP switch (1) with ignition switch OFF.
2. Remove CPP switch (1) from pedal bracket.





Installation
1. Install CPP switch to pedal bracket.
2. Adjust switch position.
3. Connect connector to CPP switch securely.
